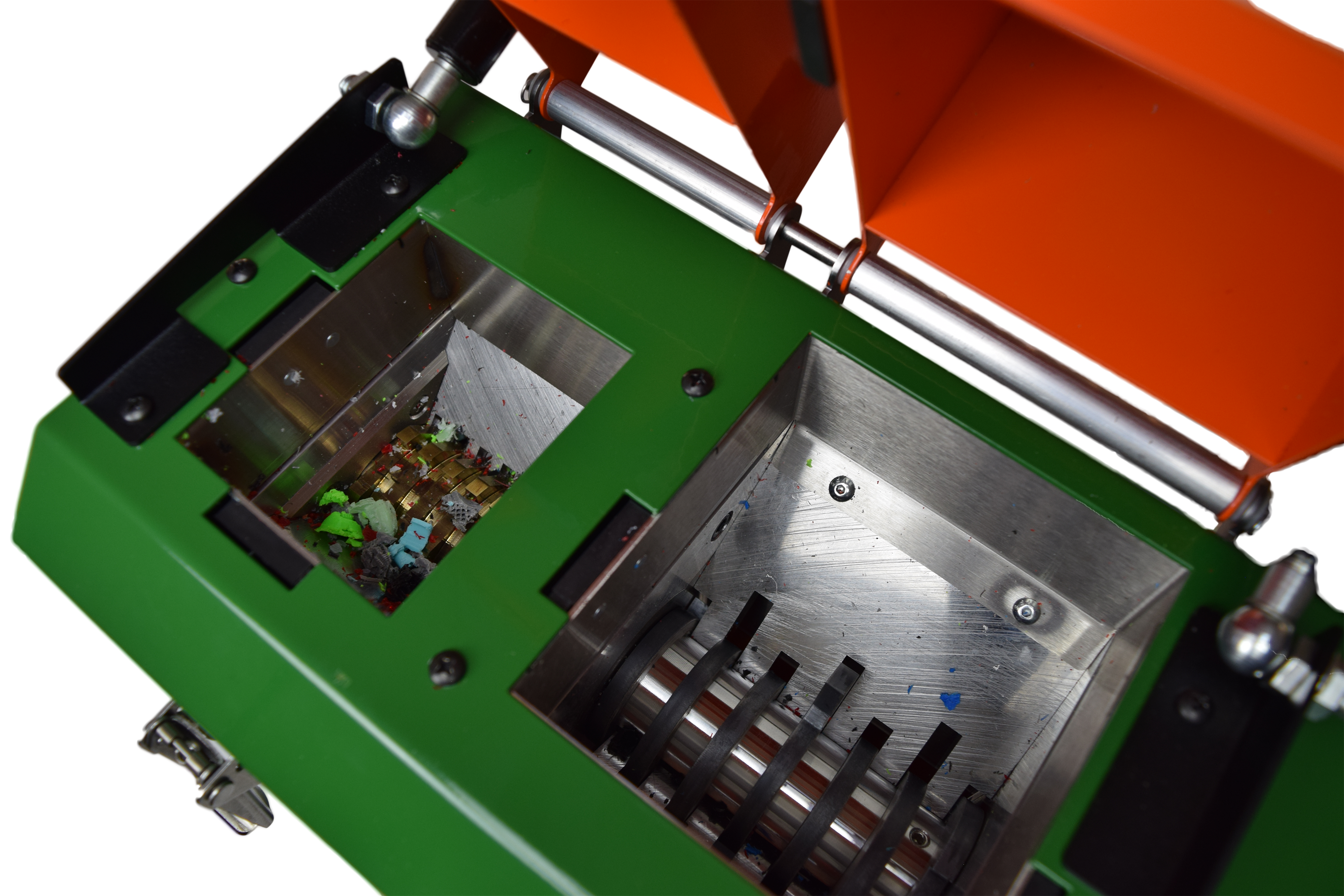

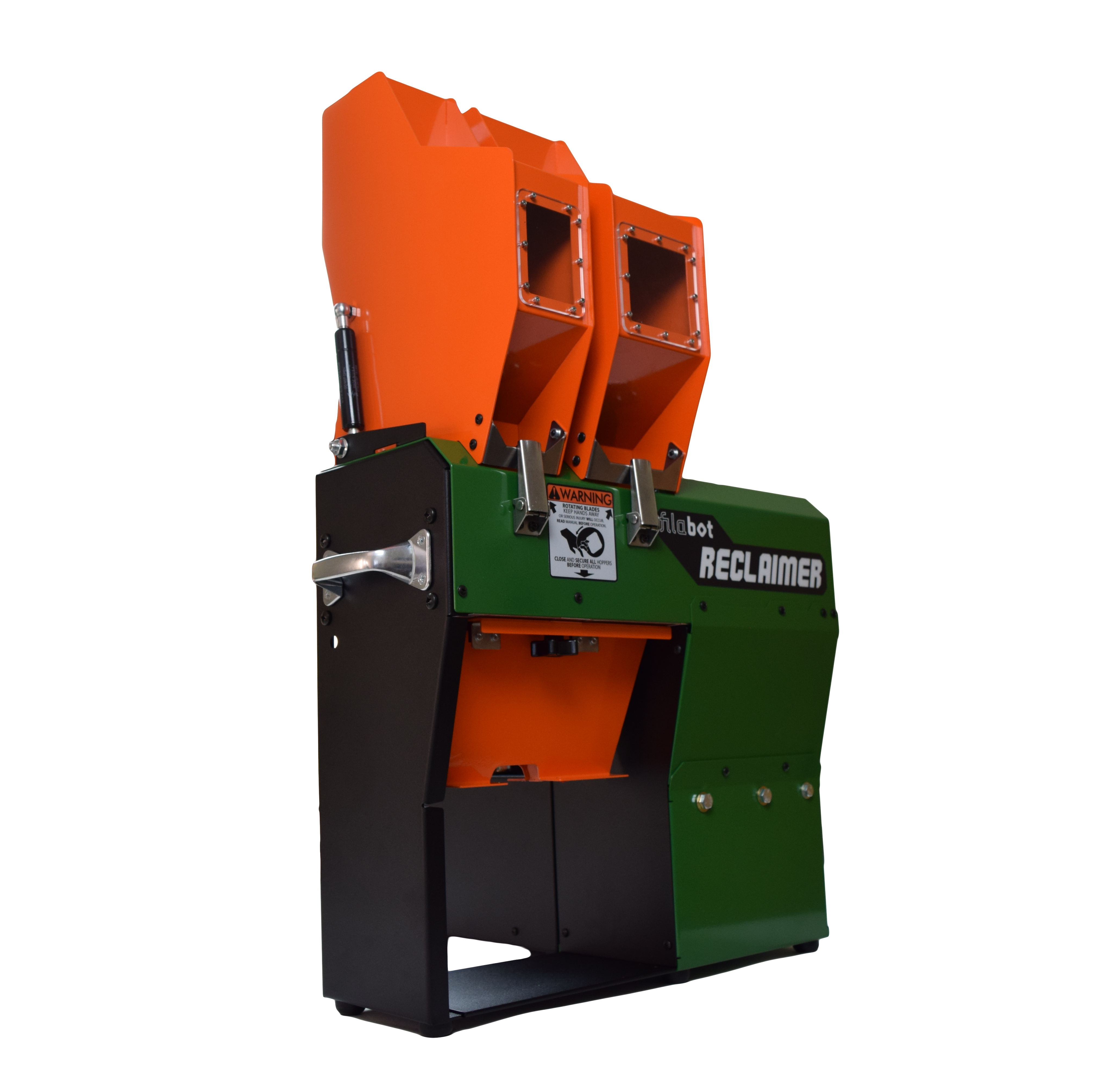

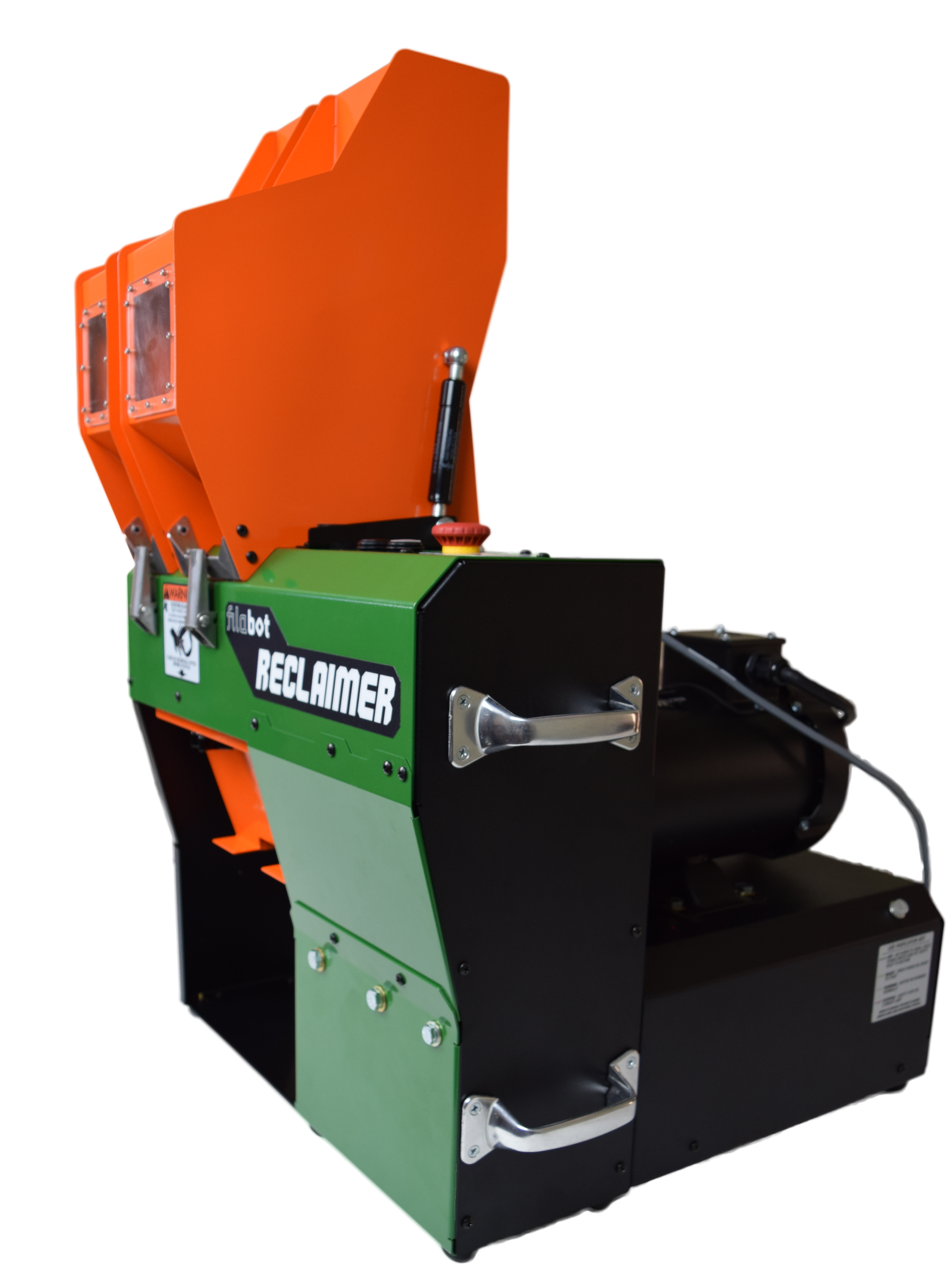

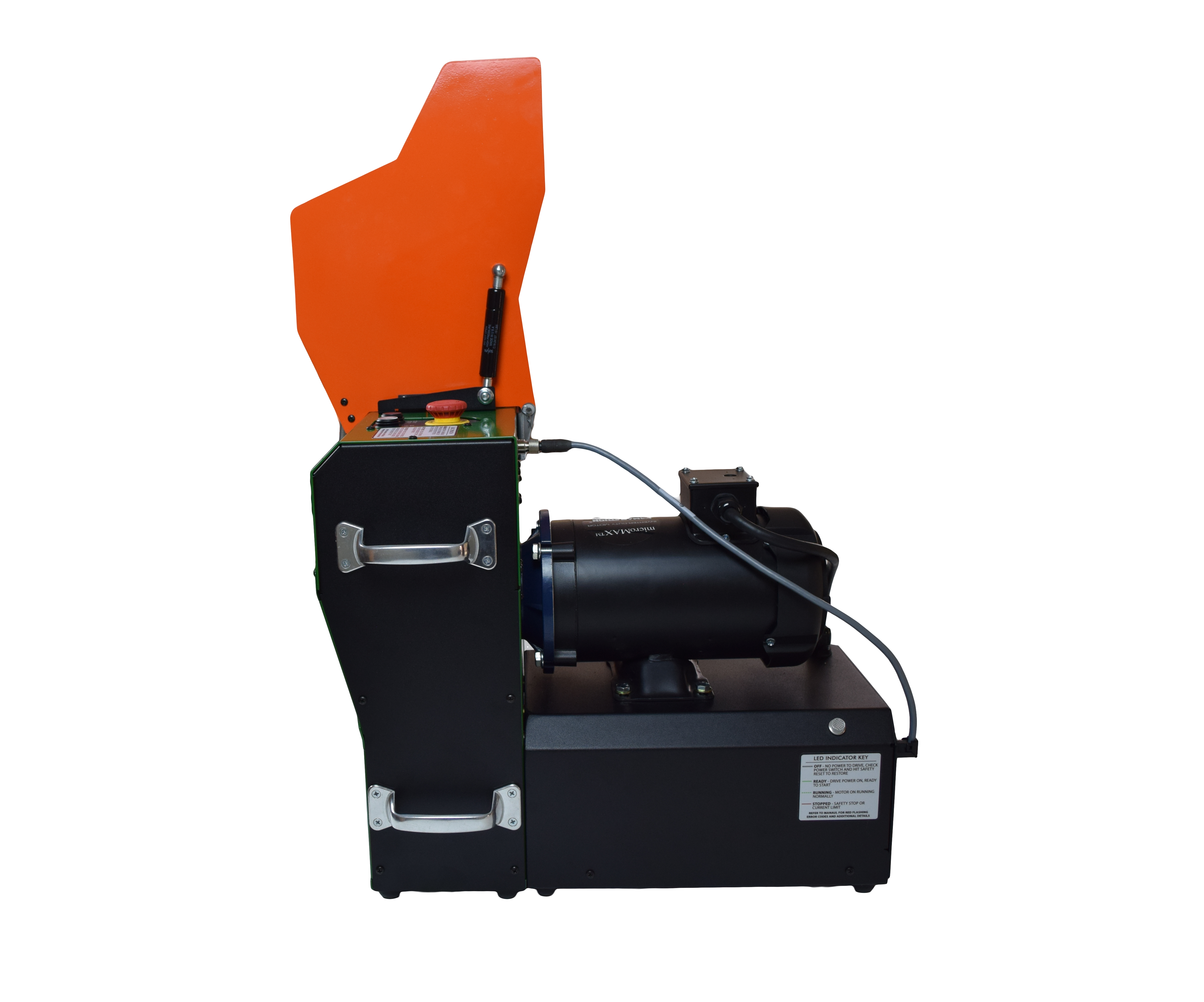

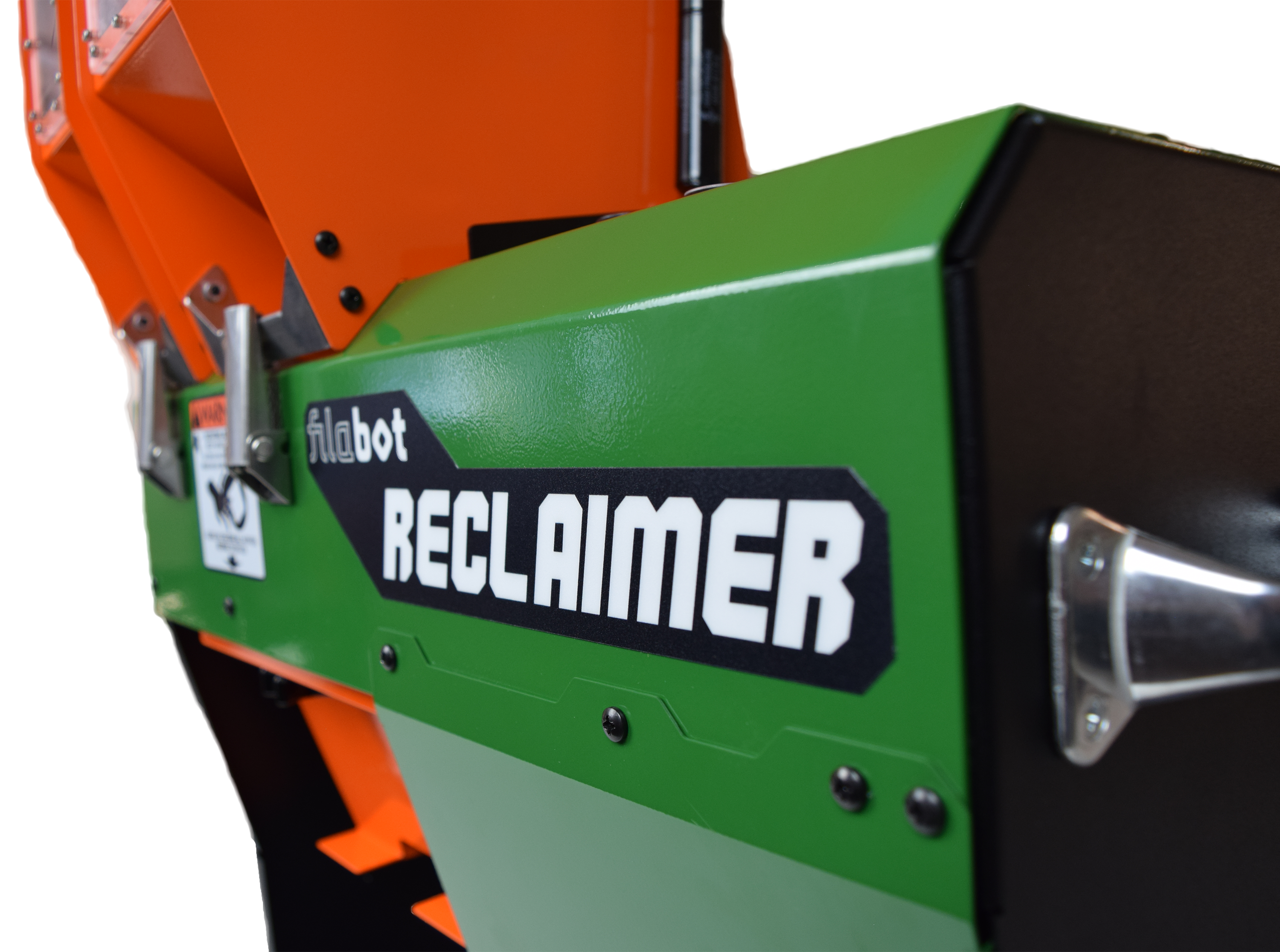

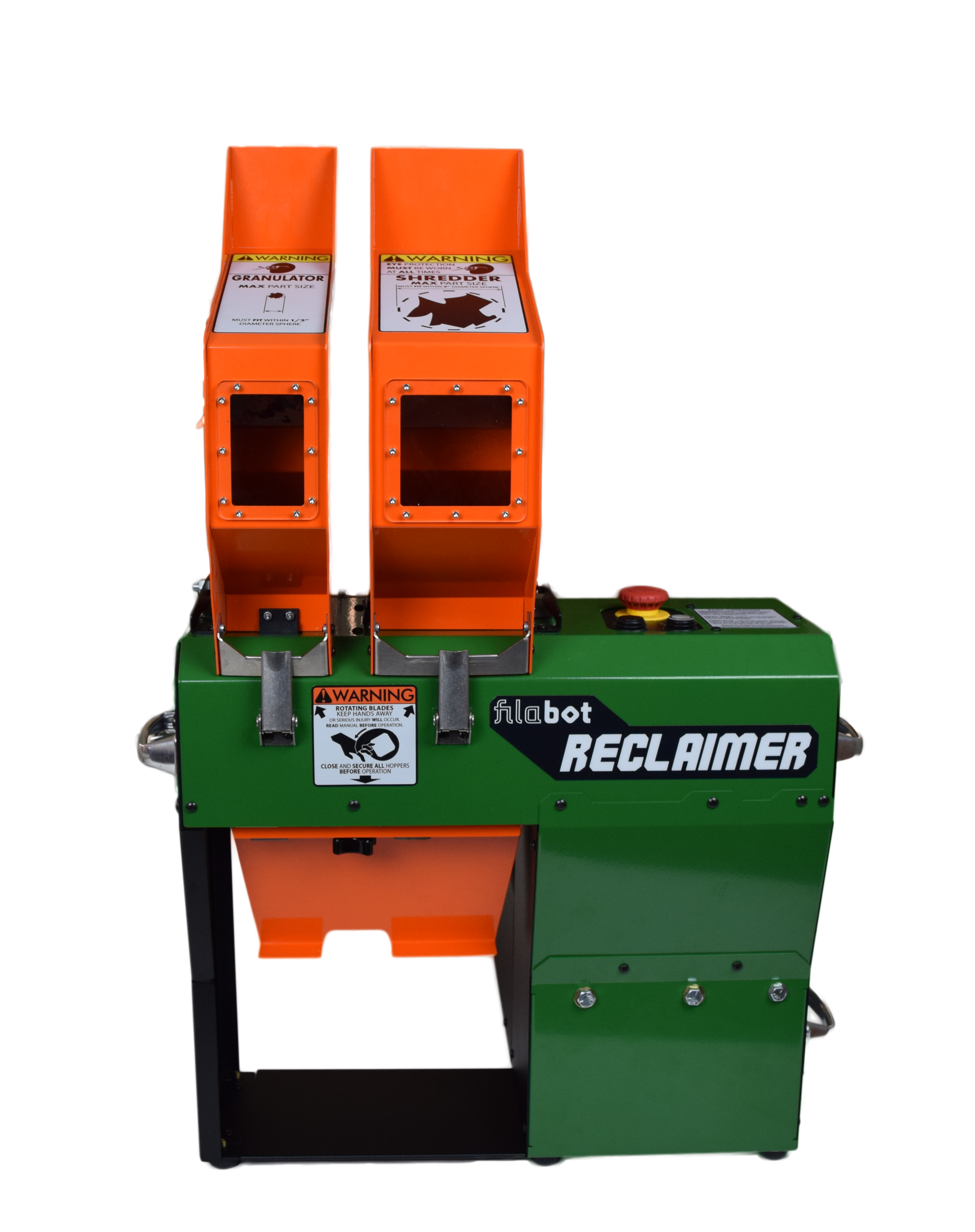

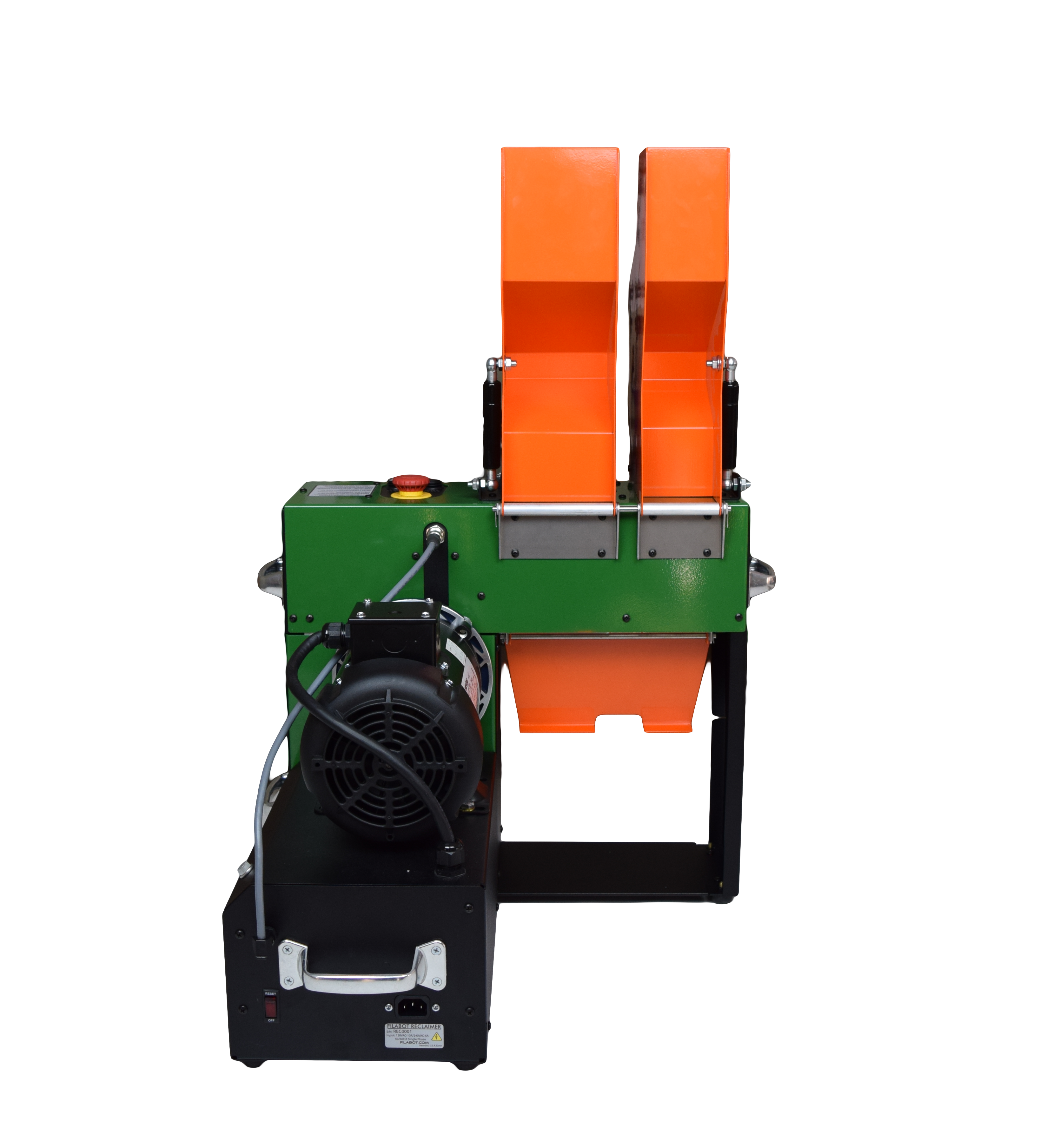

The Filabot Reclaimer is a granulator unit that breaks down plastic, in failed print form, waste plastics, etc. and turns that plastic into particles that can be further processed in our Filabot extruders. This unit has a two-stage breakdown process. The first stage, the Shredder, breaks down large chunks of plastics into smaller pieces, from there the broken down chunks are fed into the granulator that breaks the pieces down to the final extrudable size.
Assembly Required - The Filabot Reclaimer is shipped in three separate boxes. Assembly is required to use the unit. Two people are needed for assembly and moving. See the user manual for more details.
Recycling plastic is a process that if followed correctly will produce great results. Granular material has much inconstancy in size, therefore it is not currently possible to produce high tolerance filament directly from grindings. Producing printable filament requires these steps using our Filabot hardware.
1. Grinding Plastic - Filabot Reclaimer
2. Dry Reclaimed Plastic to Remove Moisture - Can be done with an oven, desiccants, or standard polymer dryer.
3. Granular Plastic Extrusion - Filabot EX2 or Filabot EX6
4. Chopping Filament into Pellets - Filabot Pelletizer
5. Pellet Extrusion into Final Filament - Filabot EX2 or Filabot EX6
Power Input: 115VAC-10A or 230VAC-6.5A 50/60Hz 1-phase 1550W MAX
Input Connector Type: IEC 320-C14
Weight: 57kg (125 lbs) - Ships in 3 boxes
Shredder: Rotating Blades: 0.25” Wide A2 Hardened Steel Fixed Blades: Reversible 0.50” 4140 Steel Plate
Granulator: Rotating Drum: 0.20” x 0.20” Cutting Teeth 17-4 SS Hardened Fixed Blades: Reversible 0.50” 4140 Steel Plate. Minimum material thickness for the shredder input is about 0.030" or 0.75mm
