Here is one for all you additive addicts out there! Wood and plastic are often placed conceptually as antithetical materials due to their contrasting qualities- endlessly variable vs.. homogeneous and consistent, natural vs.. synthetic\, traditional vs.. futuristic.... the list goes on.. In spite of this, the truth is that wood is commonly combined with different polymers as a fine dust to great effect! If you have never tried it, it is worth a try just for the smell alone- and we've got some extrusion test results that can help guide you along your way with some baseline settings for success.. Join the wood/plastic fusion revolution!
Test Technician: Nasser Abdel-Fatah
Test Number(s): ET200831NA01-Spool1 & Spool2
Plastic Name: Wood Fill PLA Pellets
MSDS: N/A Need to contact Manufacturer
Manufacturer: Push Plastics
Supplier: Push Plastics
Material Form: Pellets, light brown.
Extrusion Test Notes
Extrusion Results: The above test numbers were able to generate filament at 1.75mm with a tolerance of +0.05mm. The settings, speeds, and additions are in the correct range to generate filament. Further testing will need to look at any improvements when using a chrome screw. Also adjustments to the back and middle zone might help with consistency.
Materials were extruded in the EX6 with the following settings:
Heat zone settings:
- Front: 168 degrees Celsius
- Middle: 173 degrees Celsius
- Back: 172 degrees Celsius
- Feed: 50 degrees Celsius
- Front: Mid
- Middle: Mid
- Feed: Mid
- Motor: Max
- D.C. Volts: 20
- D.C. Amperes: 1.5-2
- Standard Nozzle Test number: ET200831NA01-Spool1/Spool2
- Size: 2.00mm
- Standard Stock Screw Test number:ET200831NA01-Spool/Spool2
- Number of Airpath’s: 2
- Fan Speed: 100% & 50%
- Magnets: 5 used along Airpath. End, Center, Front.
- Tape: No.
Spooler Settings (0.5kg spool):
- Drive: mid to slow
- Traverse: 40%
Notes on Equipment
The positioning of Equipment: When extruding the polymer space the EX6 50mm (2in) away from the first Airpath. Have no space between Airpath 1 and Airpath 2. And space the Spooler 30cm (1-foot) between Airpath 2 and the Spooler.
Graph 1. Test: ET200831NA01-Spool1. Stock Extrusion Testing Nozzle and Screw.
Graph 2. Test: ET200831NA01-Spool2. Stock Extrusion Testing Nozzle and Screw.
Below are some photos from the tests:
1. Filabot logos
2. Spooled Filament
3. Spooled Filament 2

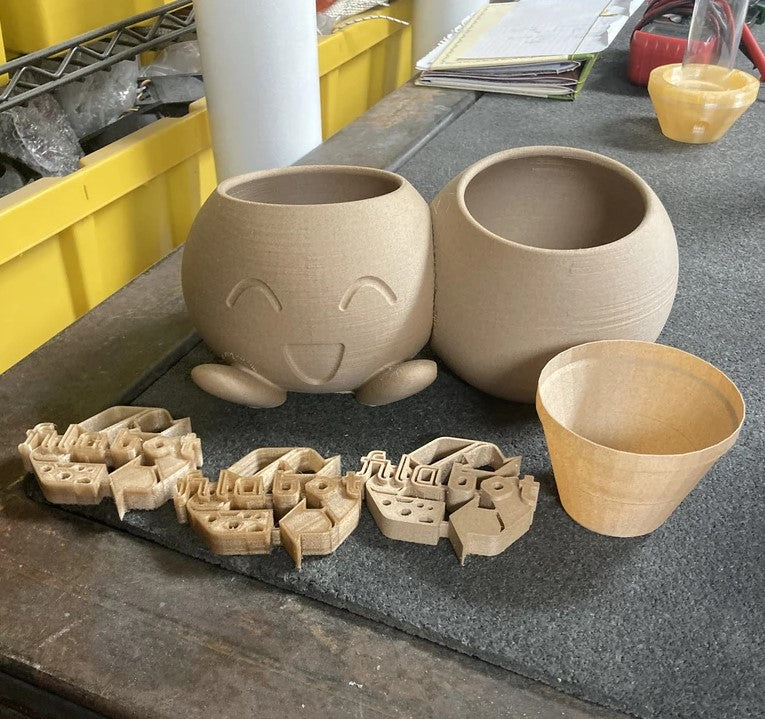

4. Prints from the filament
Want to see more?
Send us an email at firstname.lastname@example.org if you have any questions or would like to receive a folder with video samples from the test as well as screenshot and Excel data for the above tests.
