Filabot

EX6 Filament Extruder - Standard Series

Sale price$28,219.00
Voltage:110VAC
Quantity:

Contact Us

Filabot 3D Printer Recycling Filament Firm Logo Contact
Email: contact@filabot.com

Due to increased support volume, we have switched all our customer support inquiries to an email ticket system. This will increase our support window and provide you with faster support. If you would like a callback, please email us your phone number so we can assist you.

Our standard response time is 24 to 48 hours on a typical business day.

Shipping Department Hours:

7:00 AM - 5:00 PM
Monday - Friday

Address:

Filabot HQ
81 Parker Road
Barre VT, 05641

www.filabot.com
www.massivedimension.com


Other Resources

Help Center

Extrusion Hardware

Tested Plastics - What plastics work, what do not

Videos

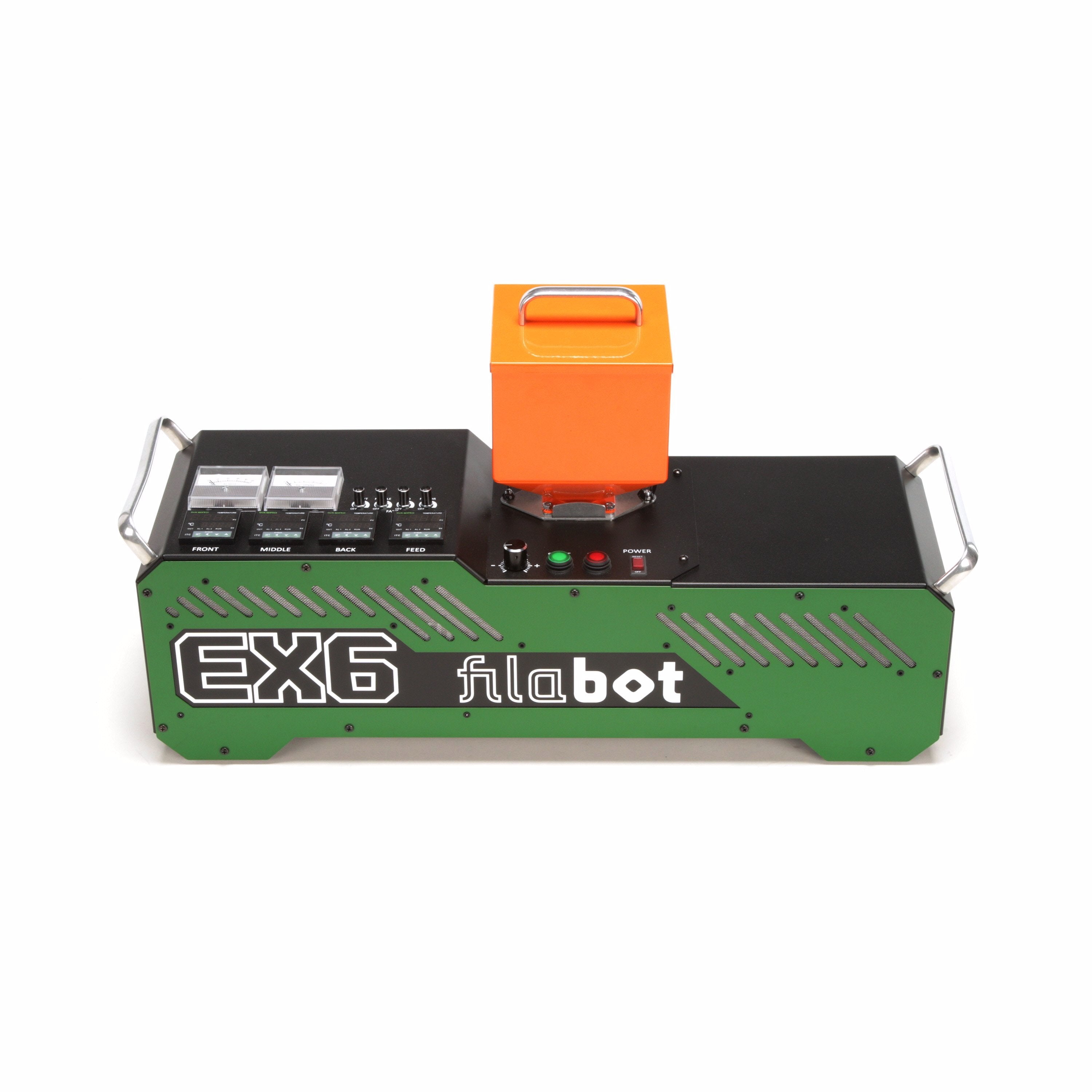

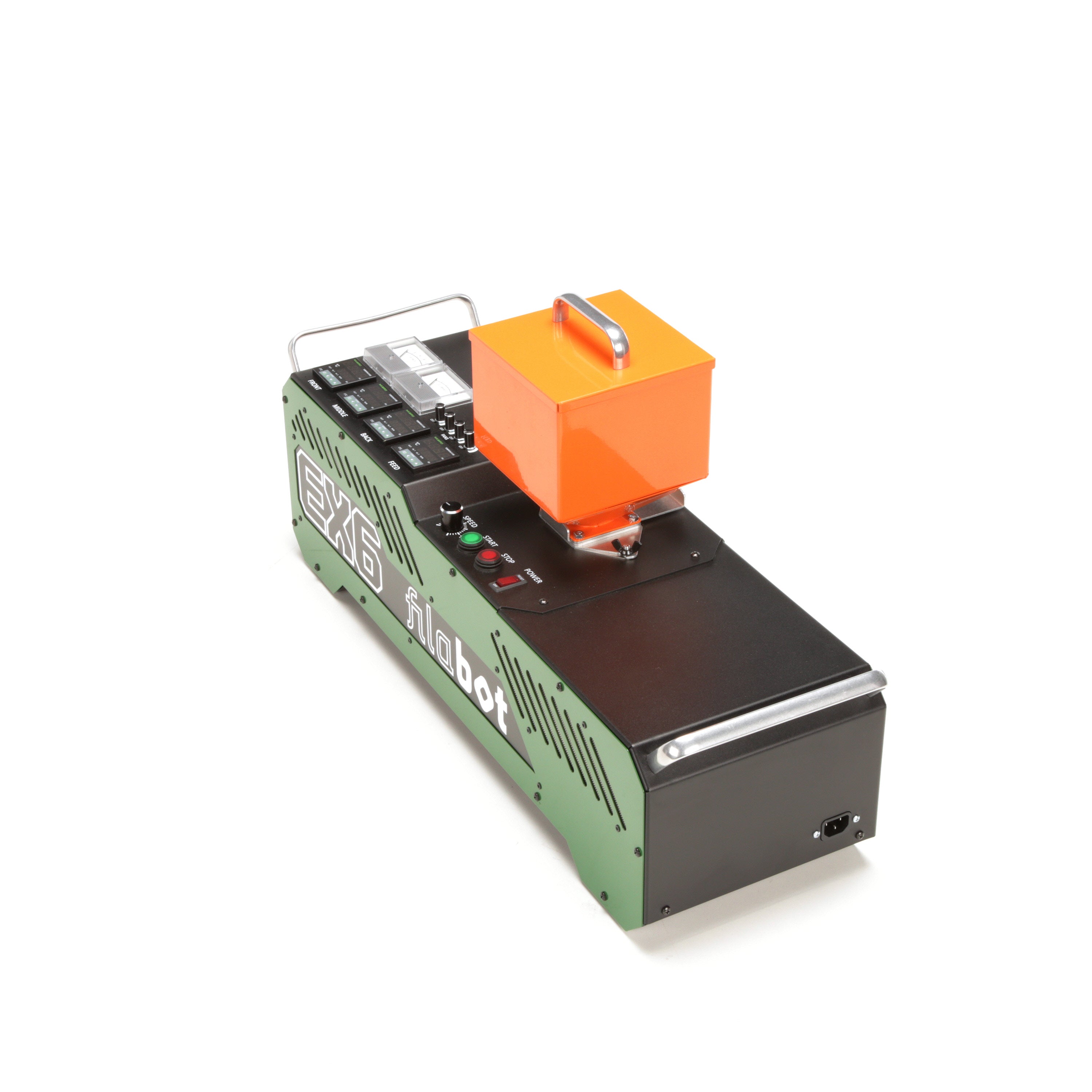

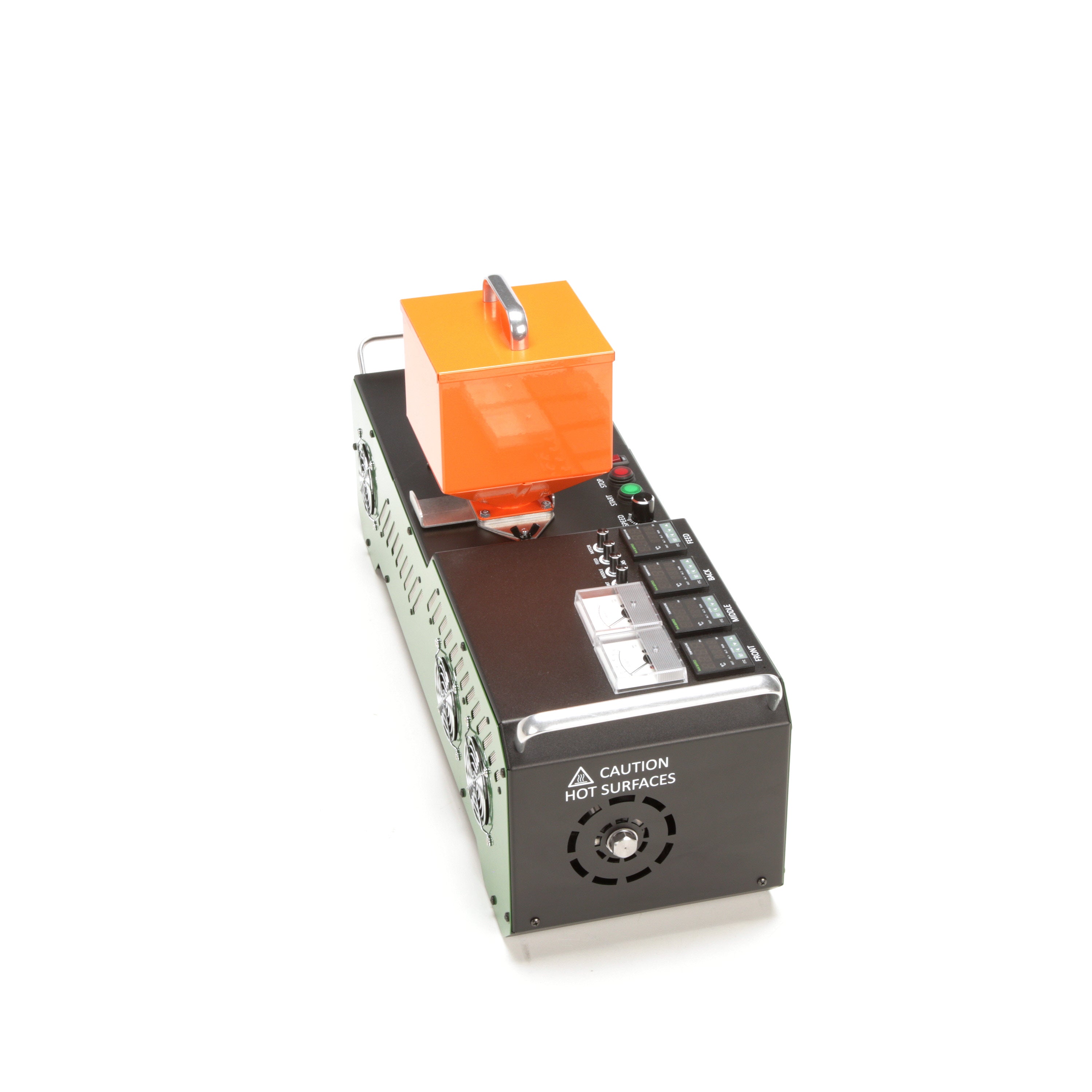

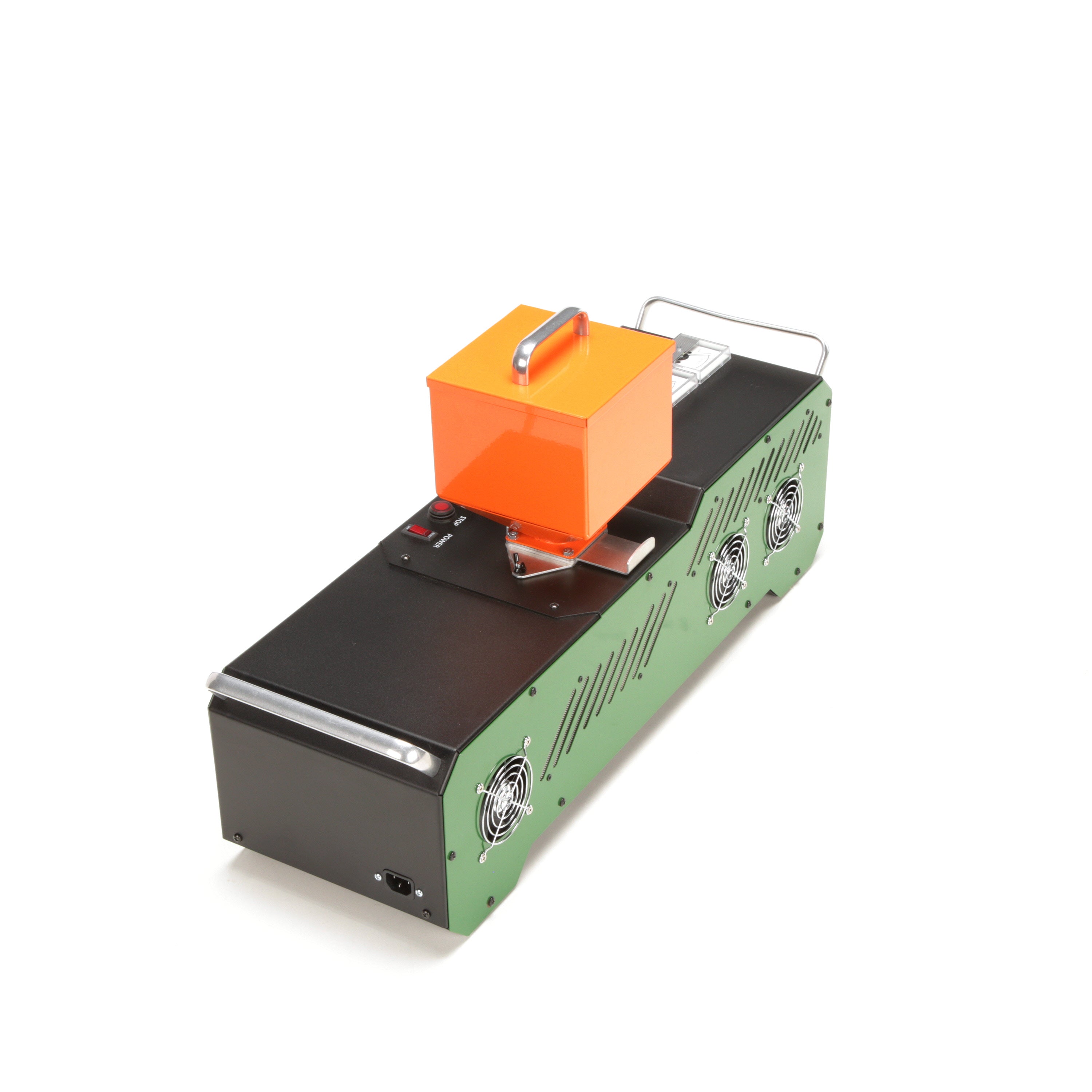

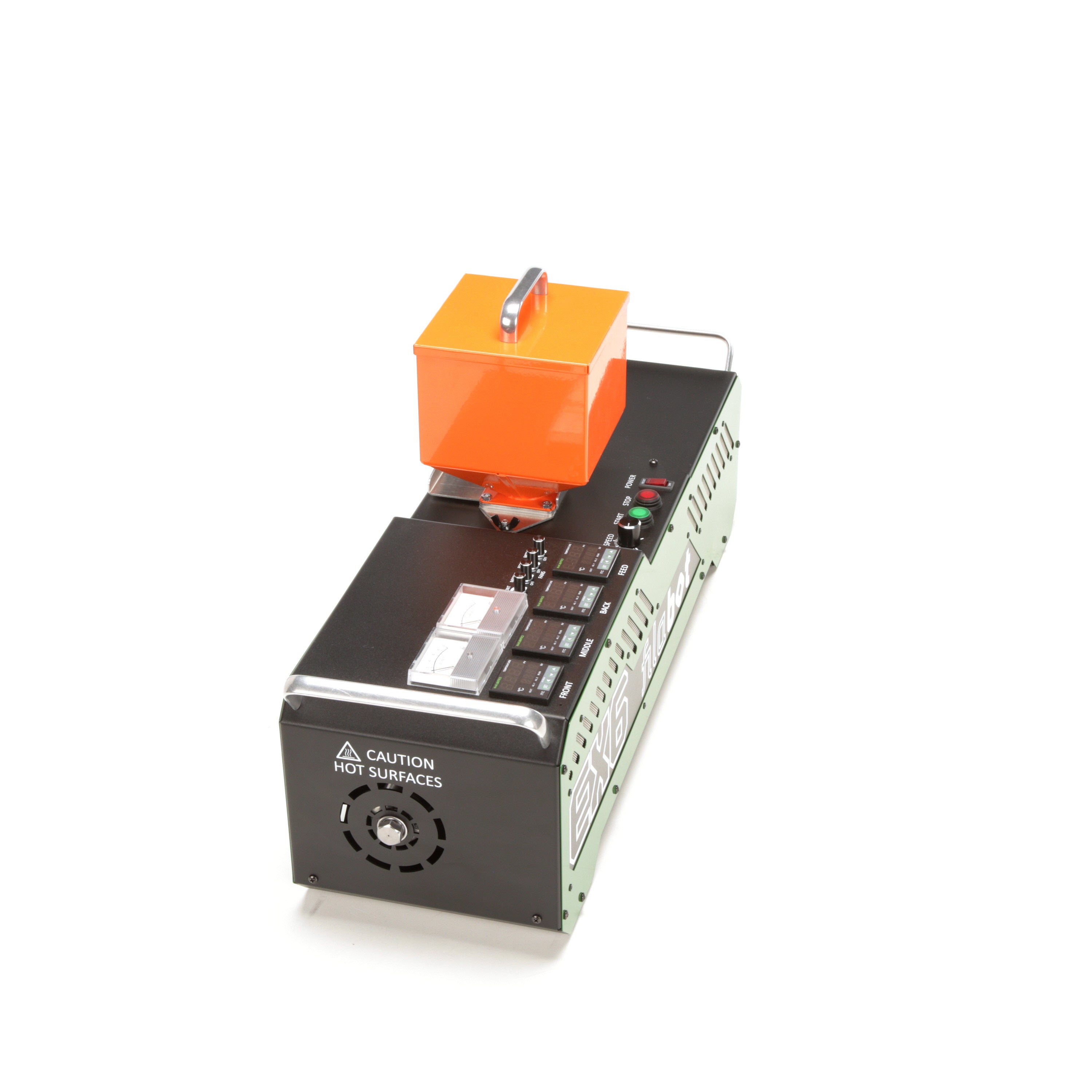

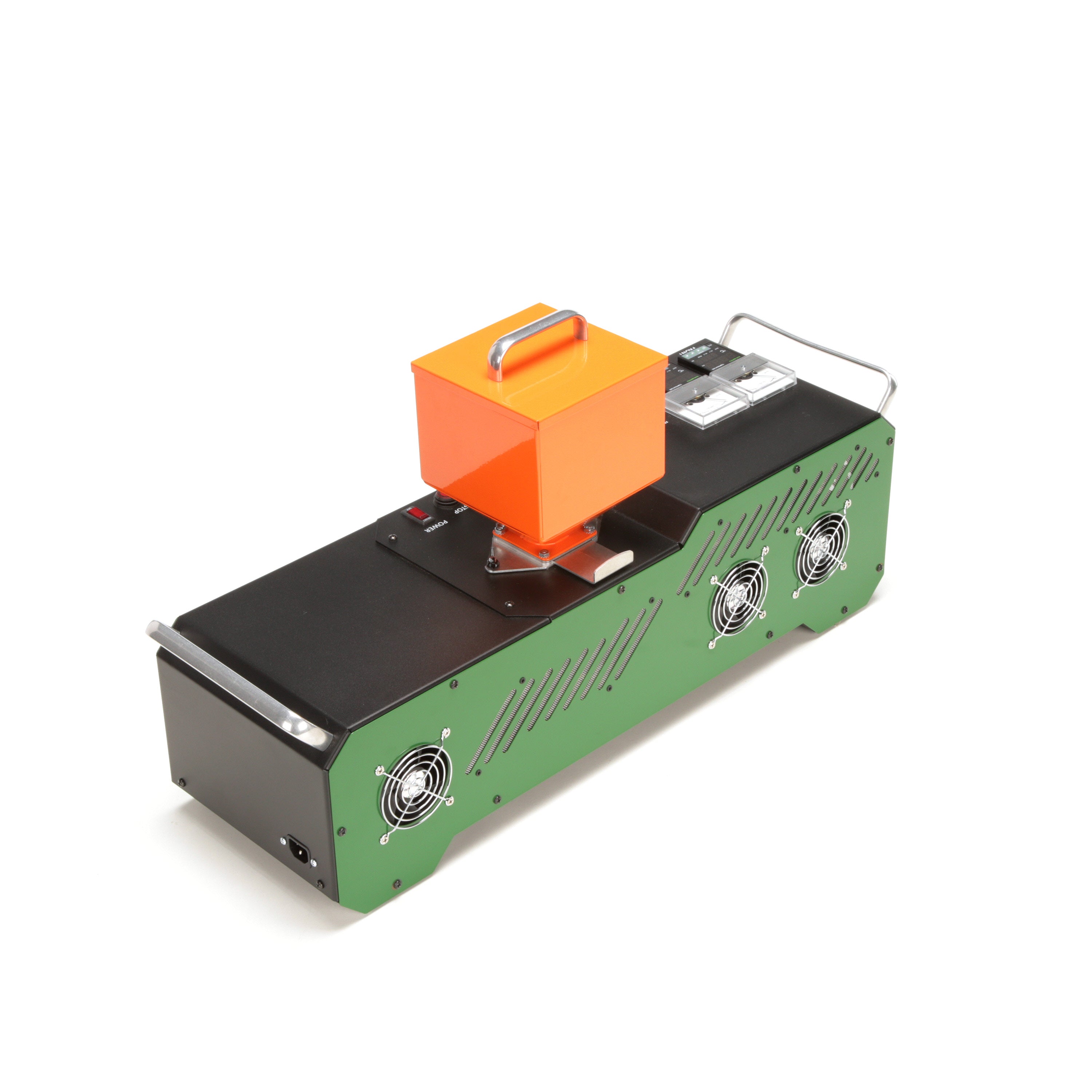

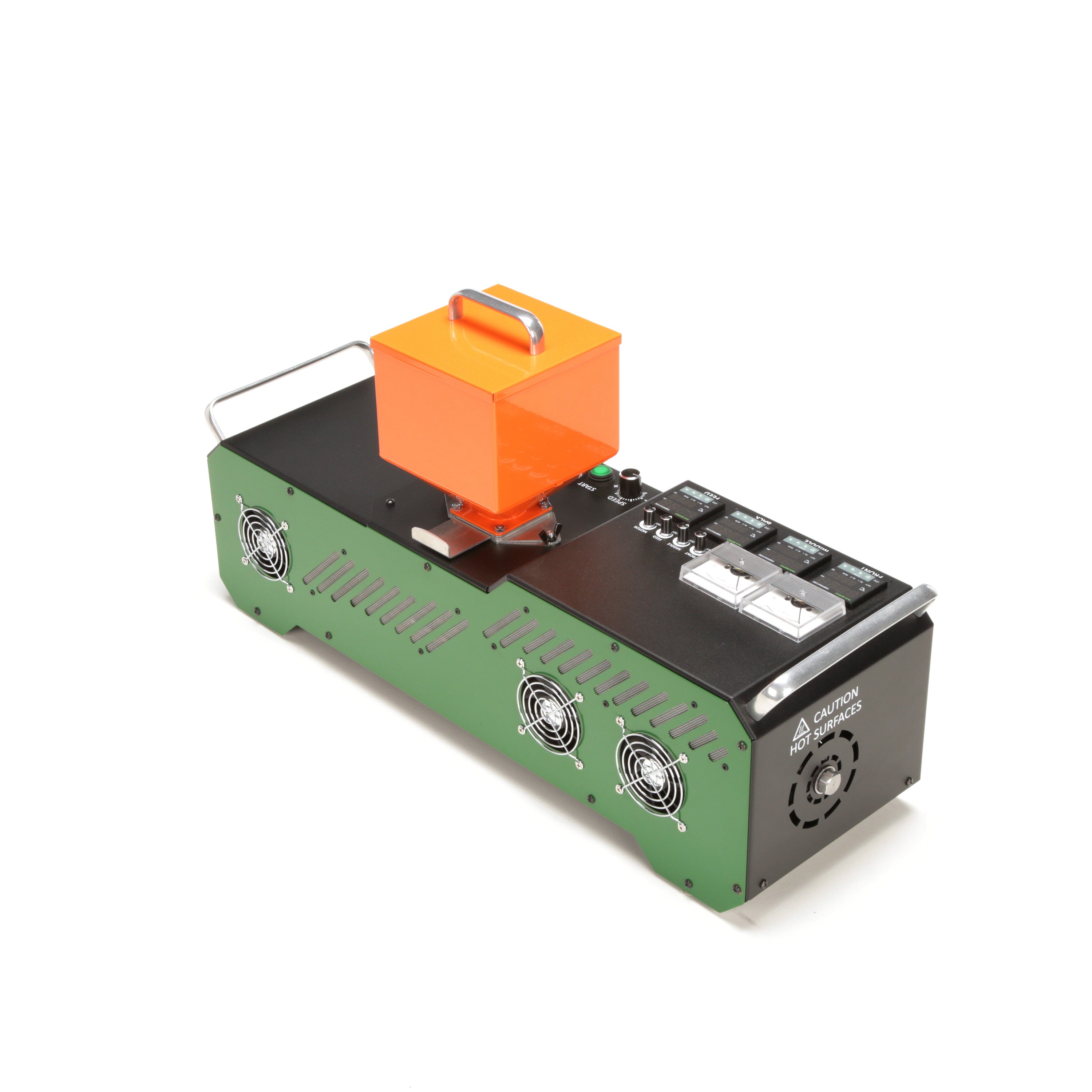

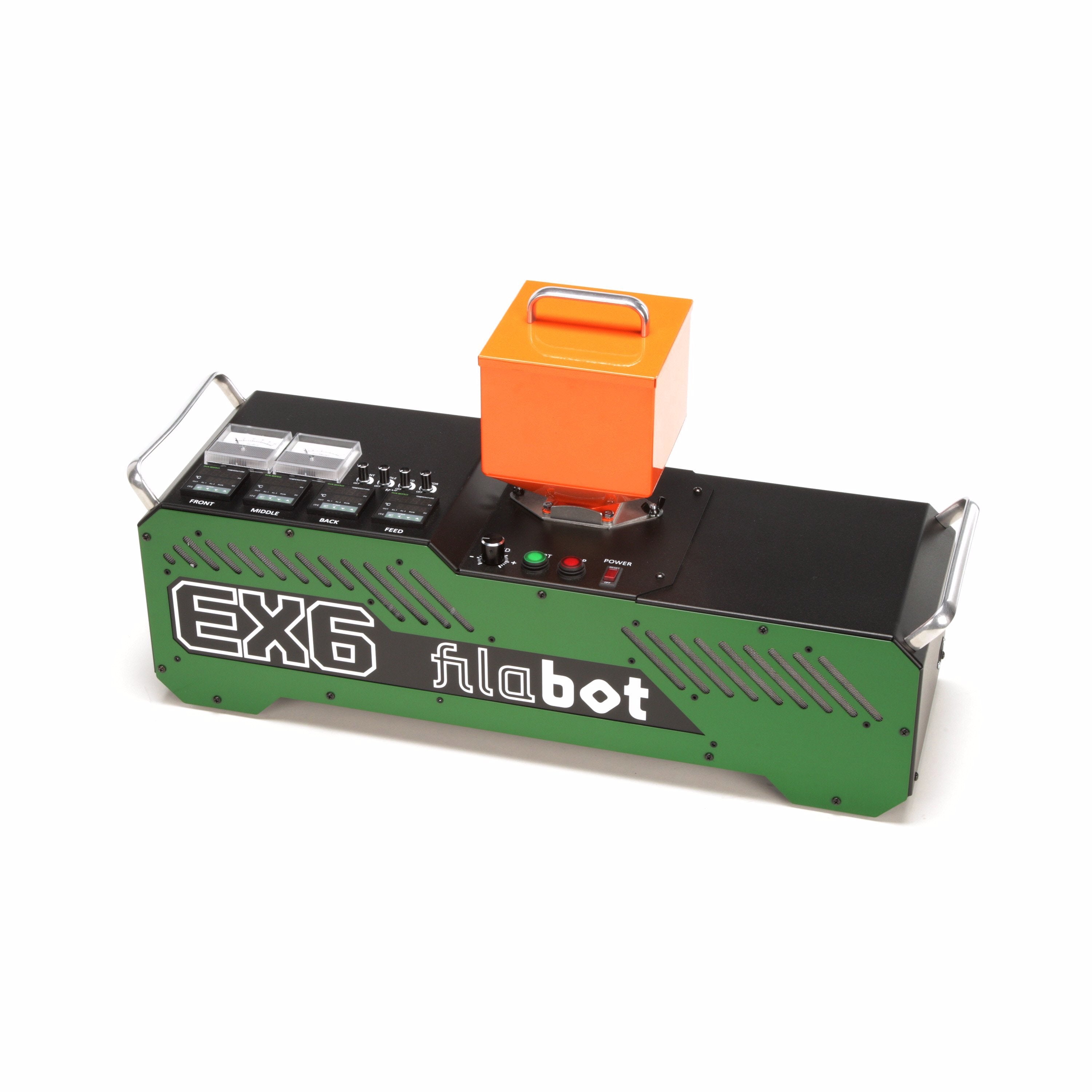

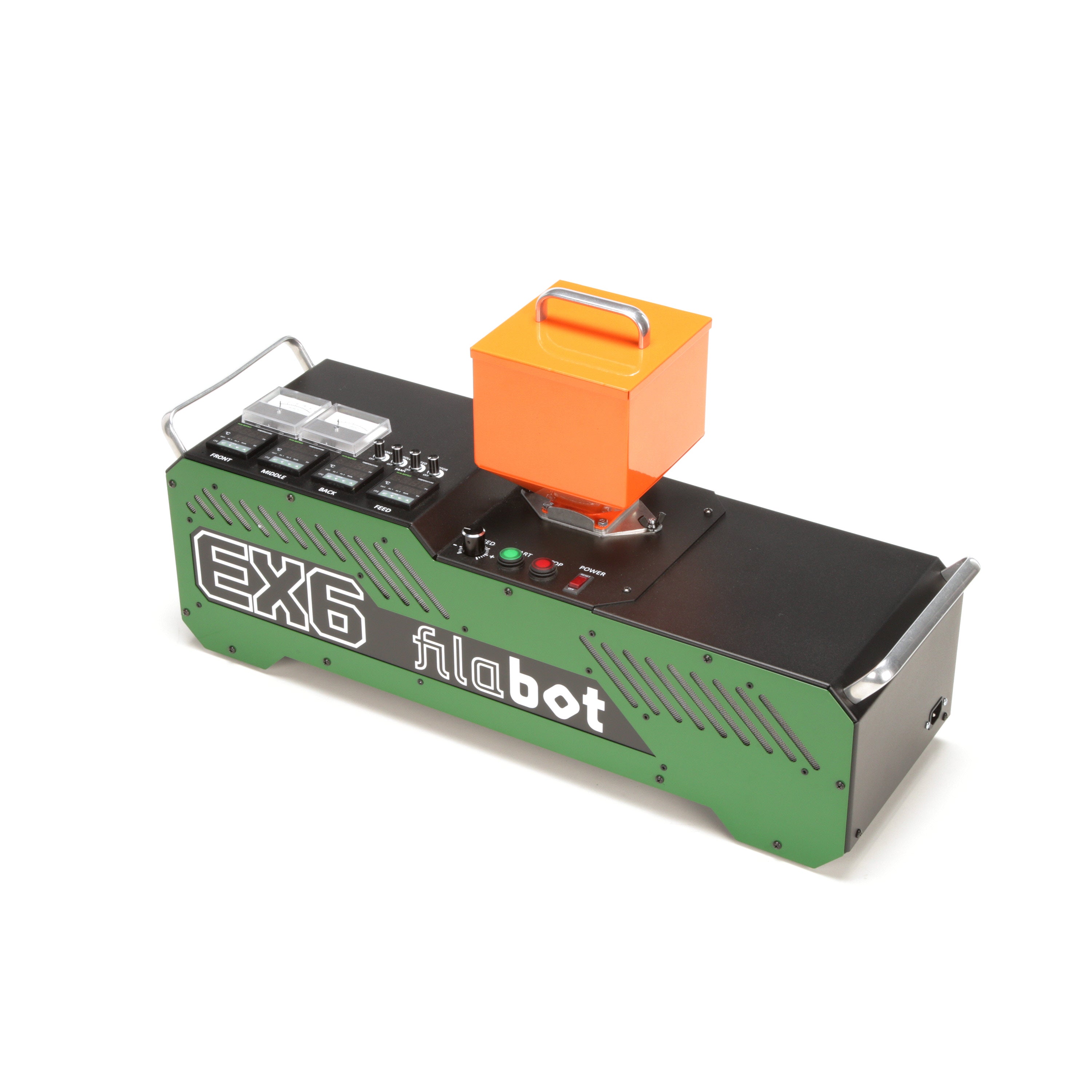

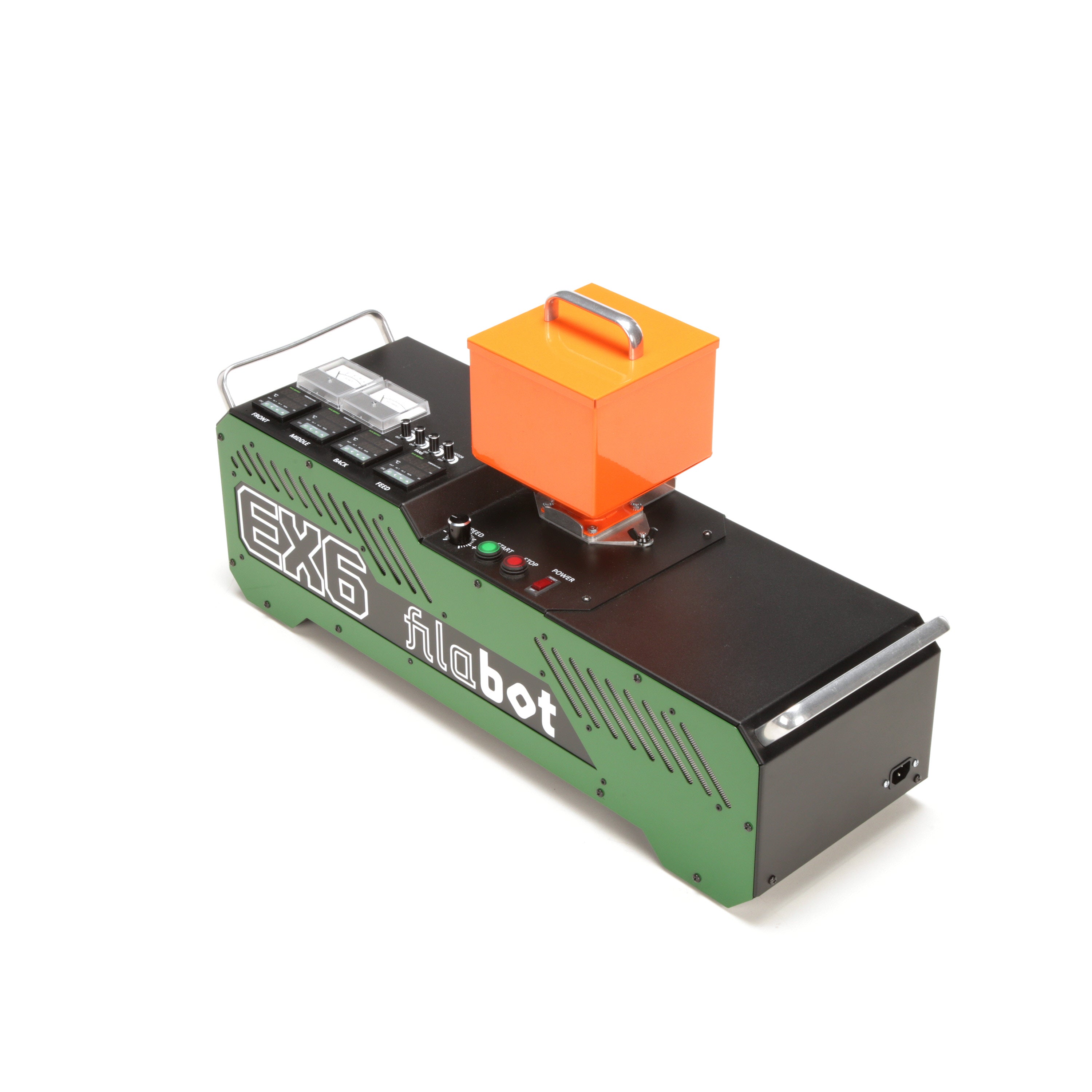

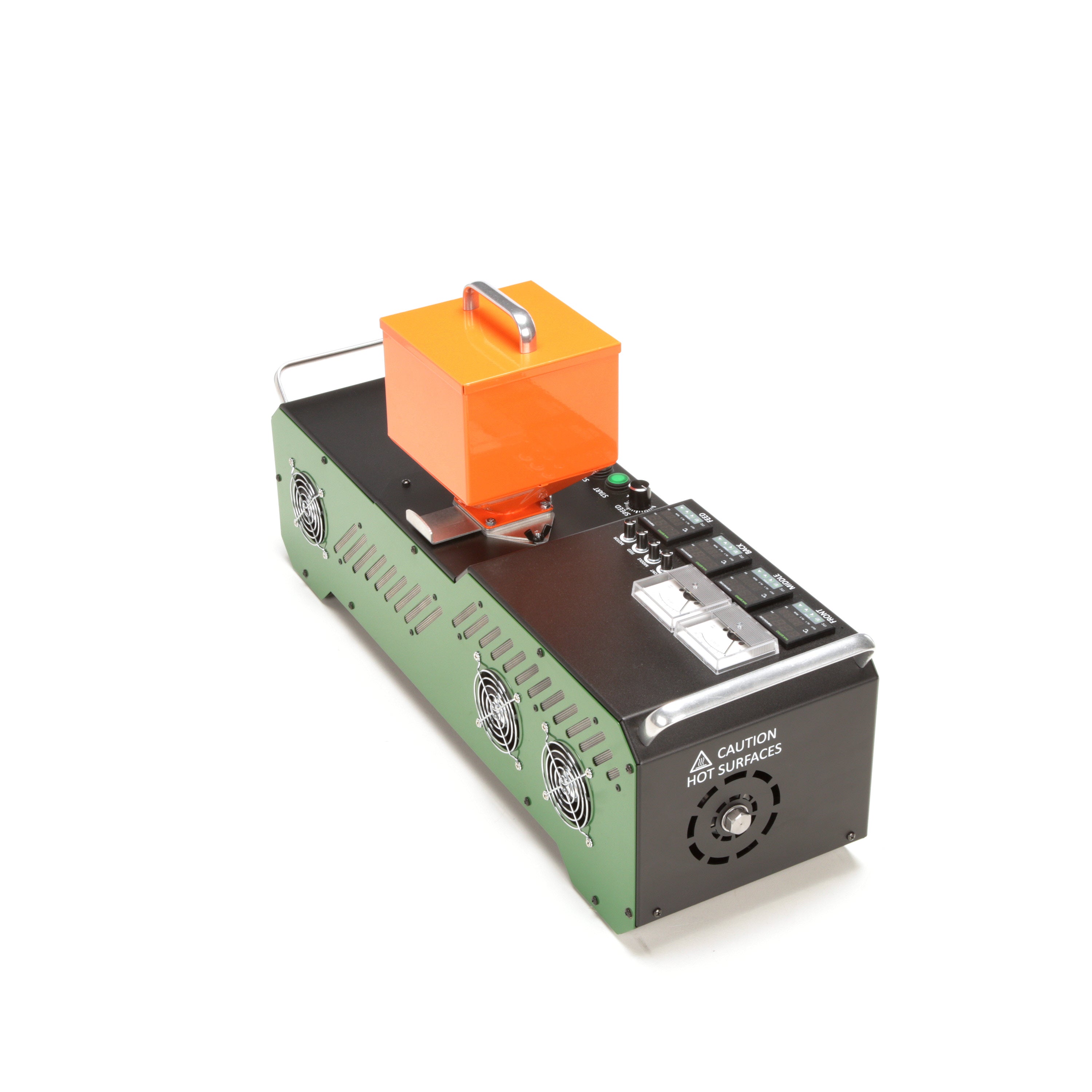

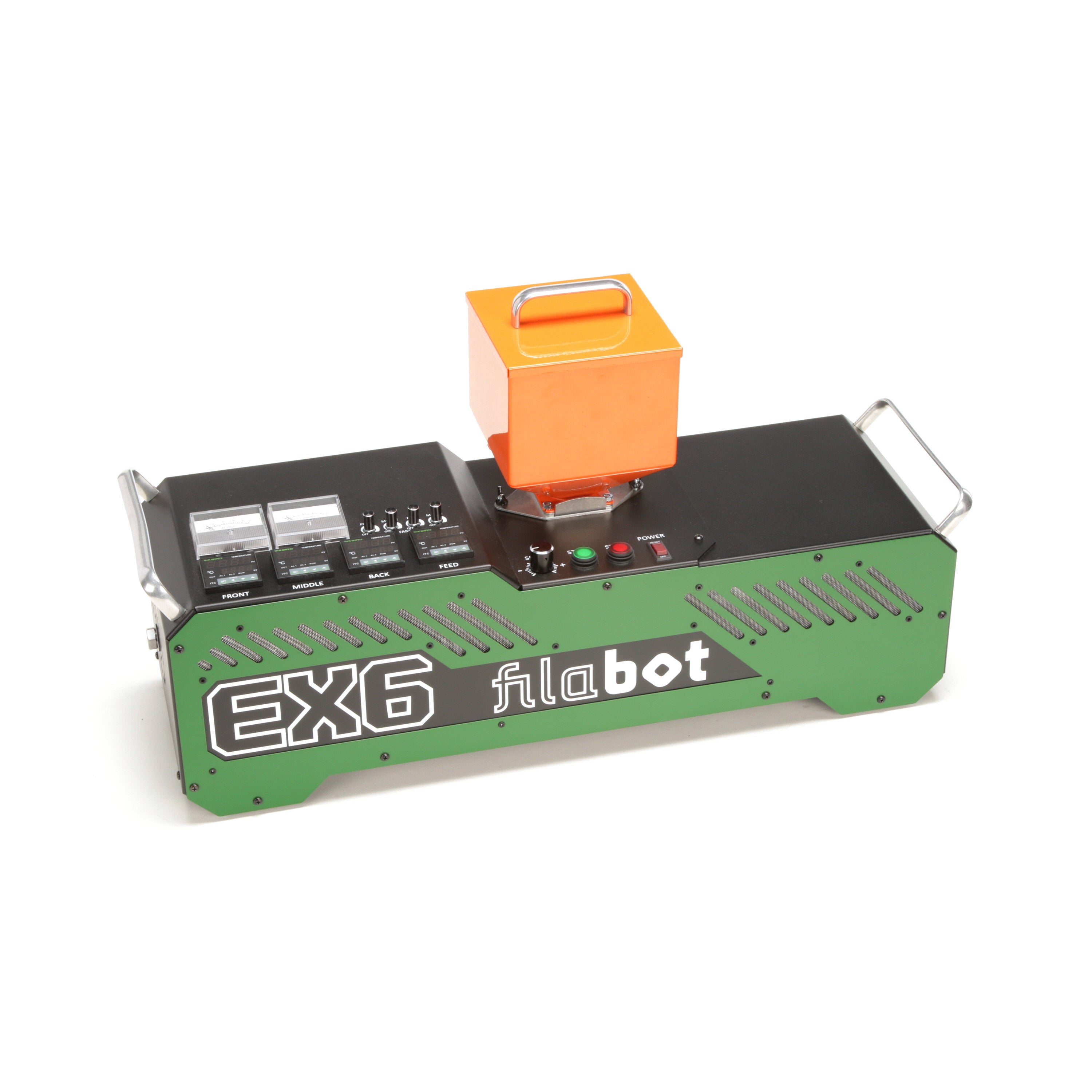

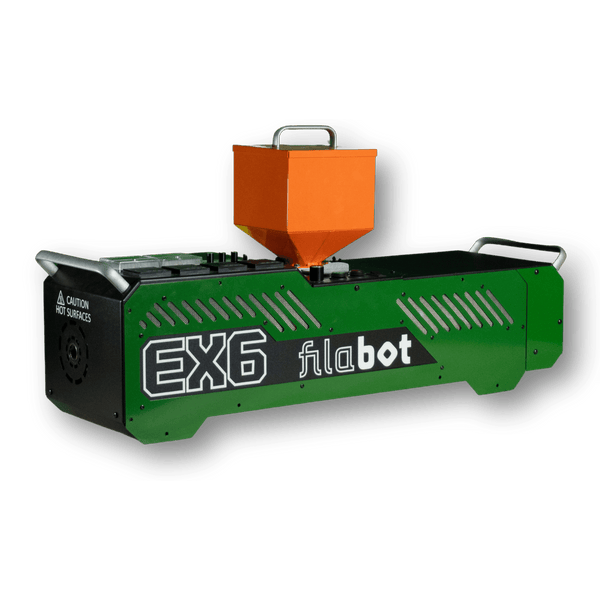

The Filabot EX6 extruder is our professional-level system, designed to be the best system for developing new polymers and for production of filament. The EX6 features a three-stage extrusion screw made from hardened and polished high-carbon stainless steel. The screw can be easily removed for cleaning and can be swapped out with the various other screw profiles to match the processing requirements of the polymer. With this new system, screws with different characteristics can be used as needed for each specific polymer, allowing screw designs to be tested and polymer output and consistency optimized. All screws have a 24:1 L/D ratio giving greater versatility and control compared to other extruders.

Click here to learn about the other available screws.

The EX6 features extrusion speed control and a 4 zone temperature control system. The speed control board includes an automatic, variable voltage control module that is engineered to regulate the precise RPM of the screw. The temperature zones are independently controlled allowing for a polymer specific heat profile.

The Filabot EX6 comes with a full one-year warranty on all parts.



Extrudable Plastics: 4043D PLA, 3D870 PLA, 3D850 PLA, Magnum 8391 ABS, and HIPS. Click here for EX6 Extrusion settings. The EX6 is also capable of processing ABS Flame Retardant, PC, PP, PS, ULTEM, PEEK, NYLON, HDPE, PETG, and WAX. Low to Higher Melt Flow Polymers. If you don't see a material listed send us a sample we can test. Click here to see our testing services.

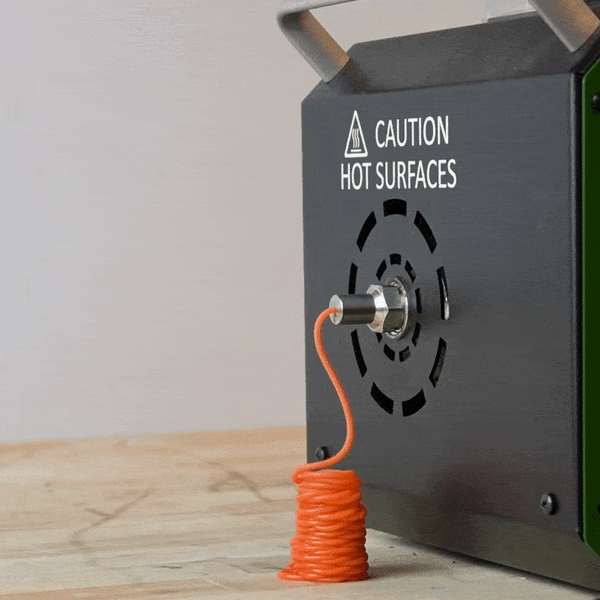

Extrusion Rate: Over 10 pounds per hour (4.5kg per hour) - Dependant on polymer properties, filament output speed may be less. Output test is done with 4043D PLA for mass flow rate at the nozzle.

Filament Sizes: 1.75mm and 2.85mm

Material Input Size: 1/8in (3.18mm) pellets to powder

Material Capacity: Hopper - 195 cubic in (3195.5 cubic cm)
Screw Void - 2.37cubic in (38.8 cubic cm)
Feed Port - 195 cubic in (3195.5 cubic cm)

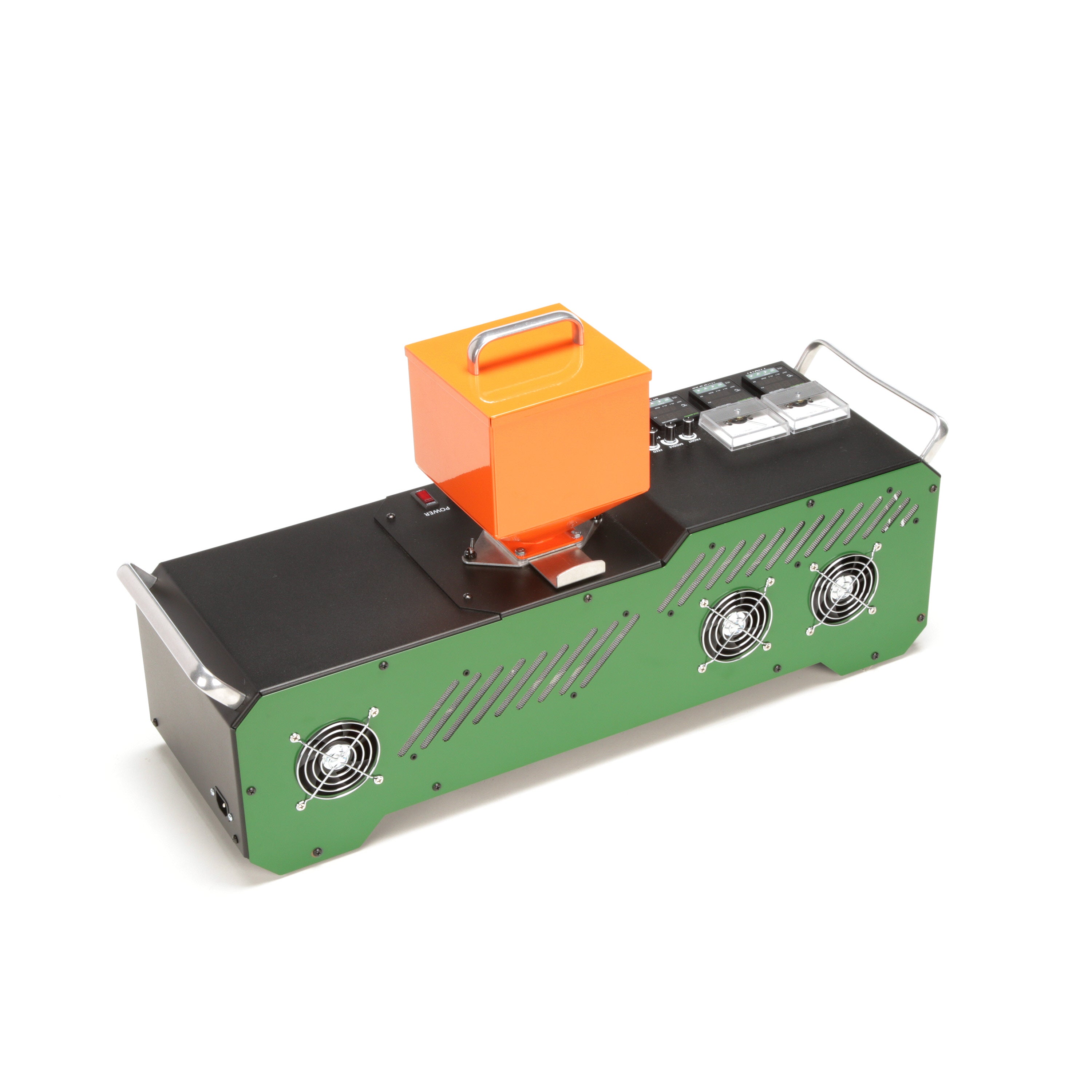

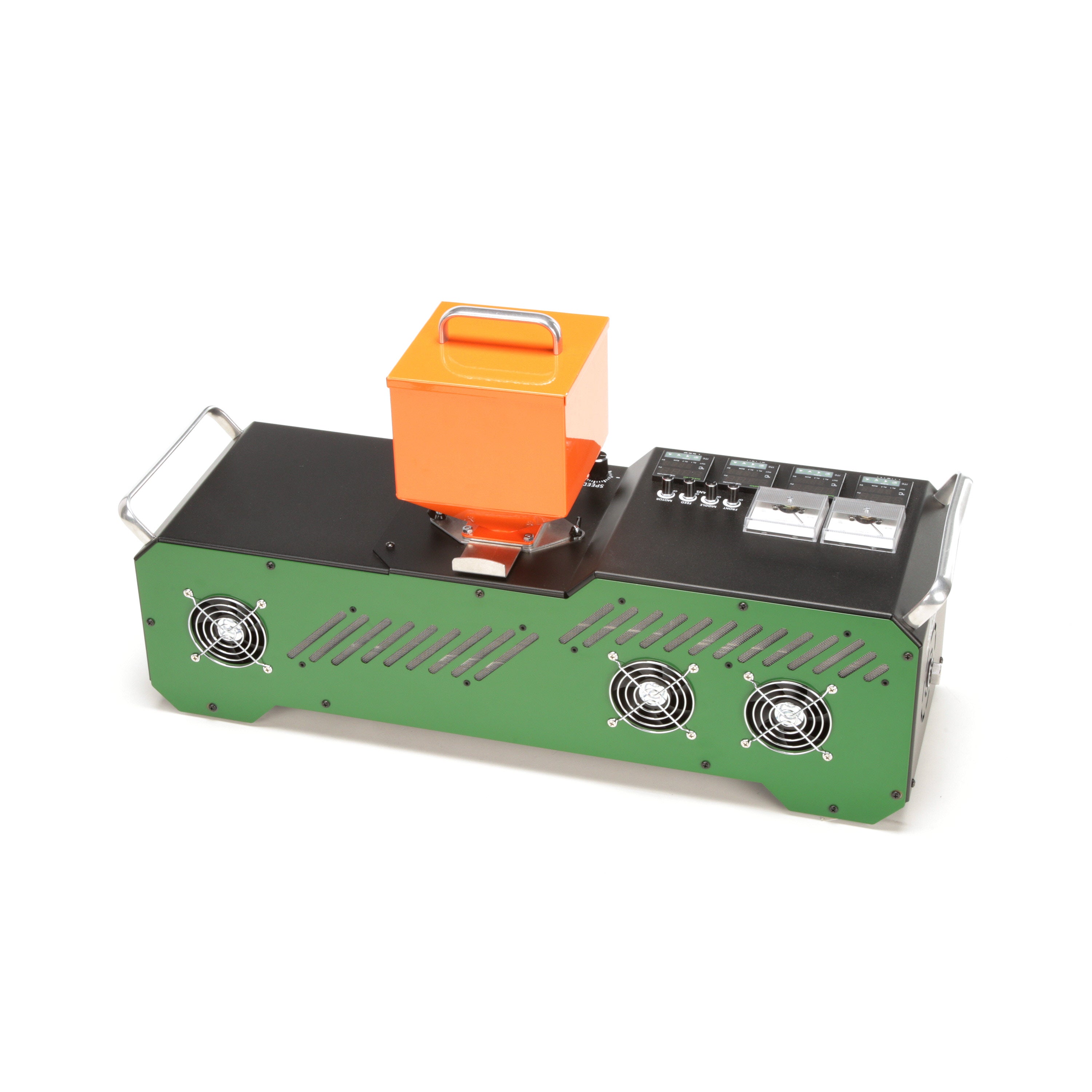

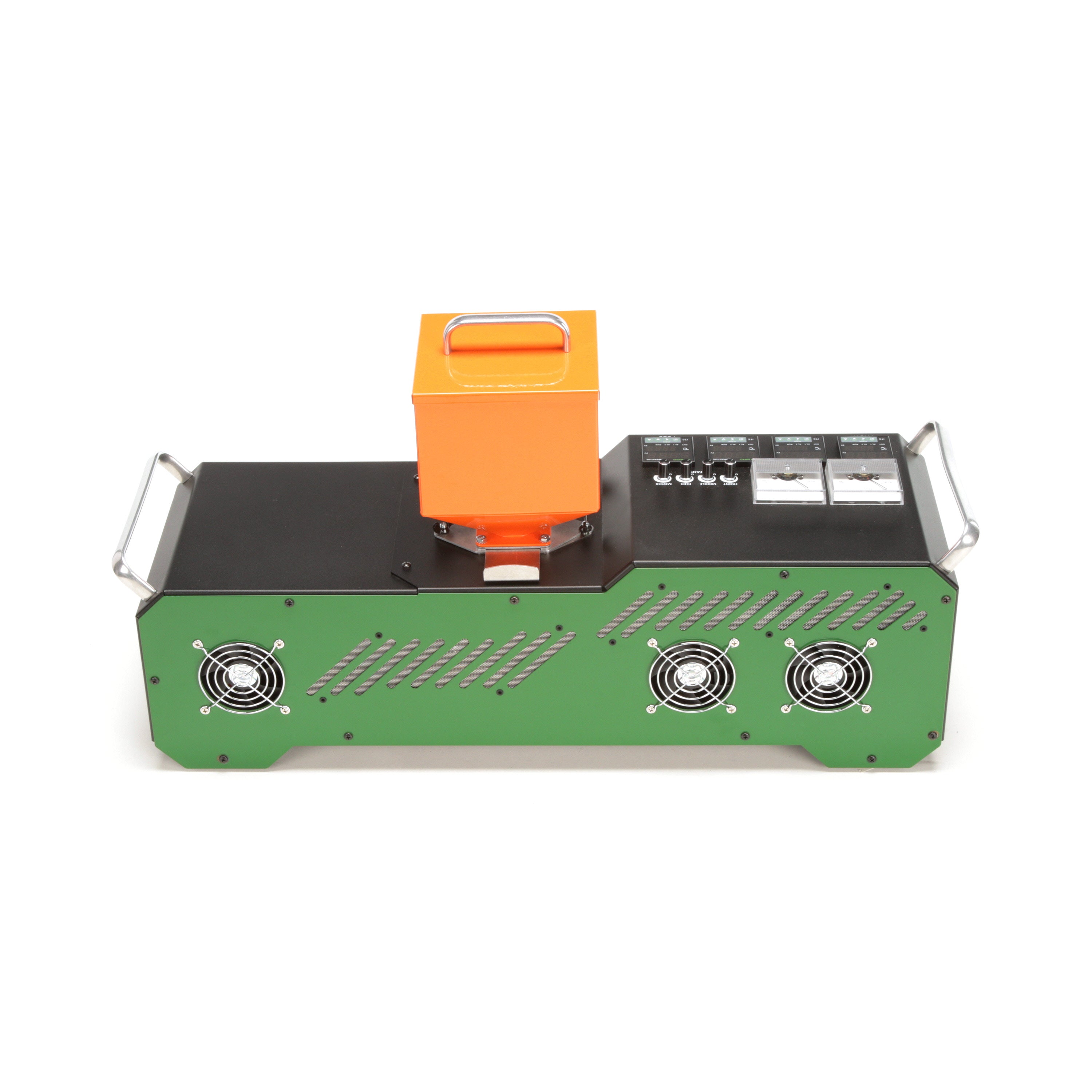

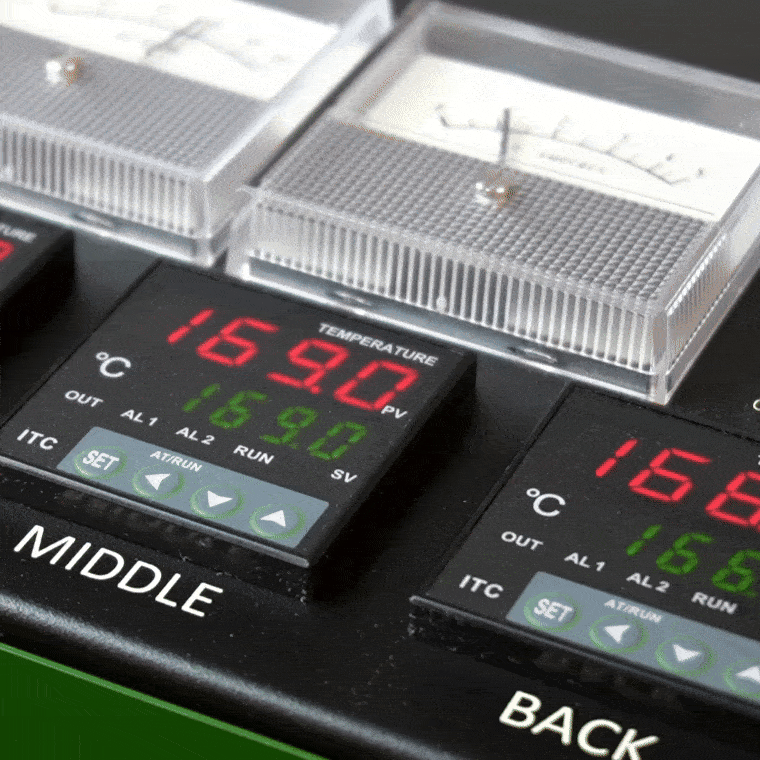

Temperature Control: 4 Independently PID controlled heat zones, all with active fan cooling for consistent heating

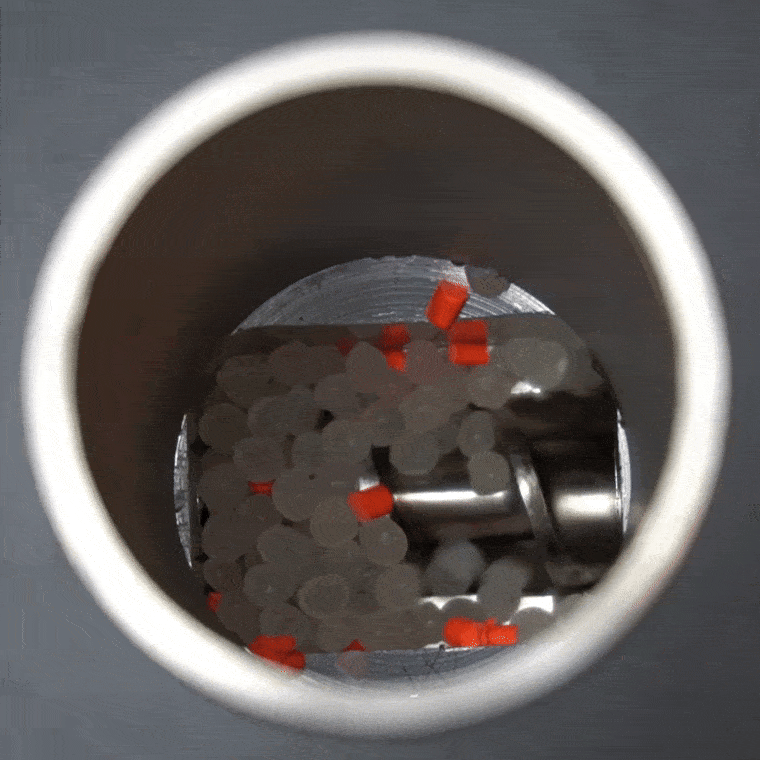

Feed Screw and Drive:

0-100rpm Speed Control

24:1 L:D Ratio Screw

16.28" Length (45.31cm)

5/8” Diameter (16mm)

1/2” Pitch (13mm)

Removable and up-gradable screw

Stainless Steel and Hardened

 Click here for Screw Specs.

EX6 Includes

1. Removable Screw

1. 2.85mm Nozzle

1. 1.75mm Nozzle

1. User Manual

1. Power Cord

1. Packet of Anti-Seize

2. Packages of Purge

1. Brass wire wheel,

1. Brass pipe cleaner,

1. 10’ of copper gauze and an extension rod for the pipe cleaner

1. Screw removal tool,

1. Pair of oven mittens.

Extrusion Pressure:

3D870 running 365 - 435 psi
Max (plugged nozzle) 765 psi

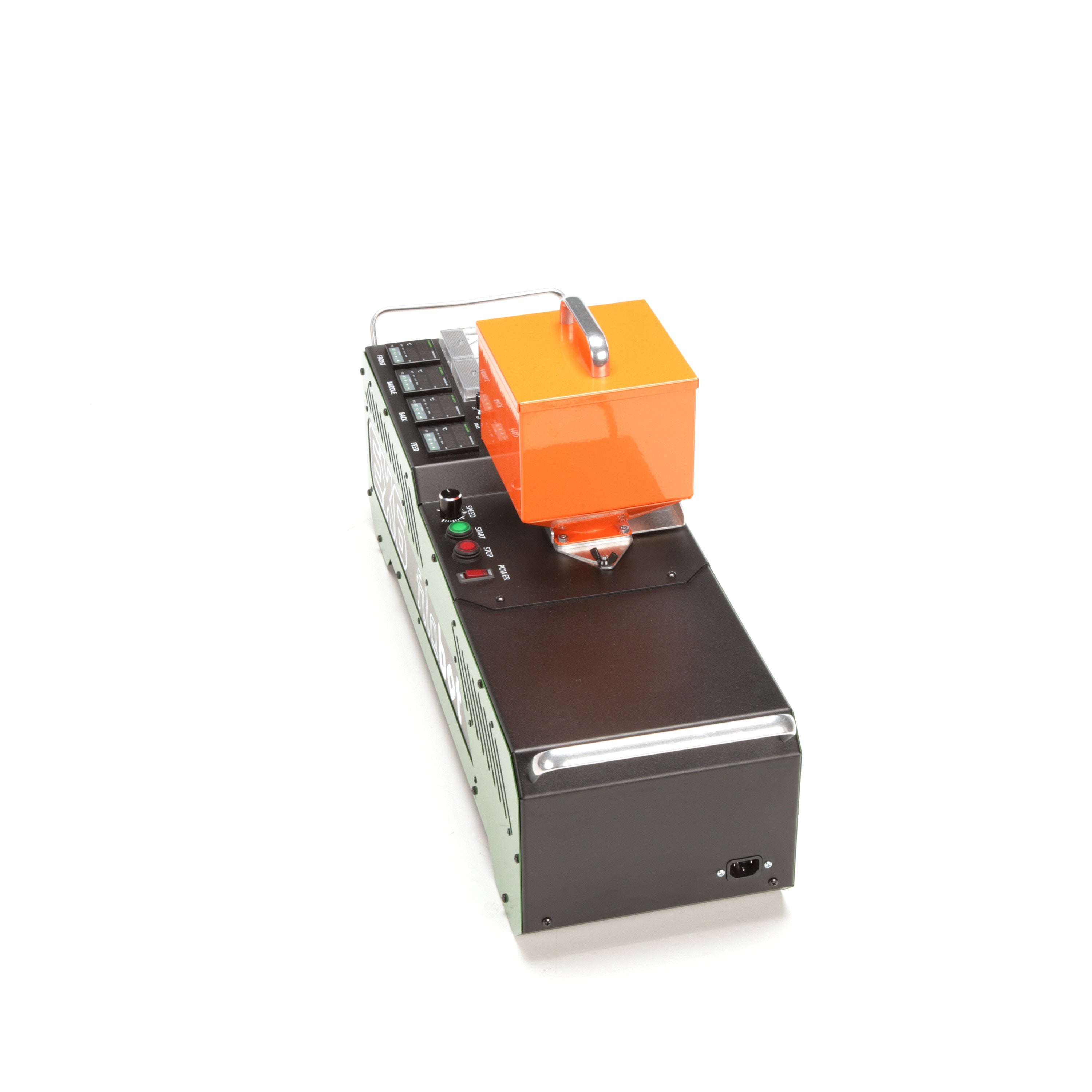

Universal Power Input: 110 VAC or 220 VAC - 50 to 60hz - 1550 watts MAXIMUM

Physical Characteristics: Weight 50lbs (23kg) and dimensions of 29.7in x 9.1in x 8.4in (75.44cm x 23.11cm x 21.34cm)

Full 1 Year Warranty

Click Here for the EX6 Dimensions

Click Here for the EX6 G Dimensions

Click Here for the EX6 User Manual

Click Here for the Ink Bird Temperature Control Manual

Check out our YouTube channel to see our systems in action!
