Massive Dimension

MDAC1 3D Printing Cell - Cobot 6 Axis 3D Printer

Sale price$121,987.00
Quantity:

Contact Us

Filabot 3D Printer Recycling Filament Firm Logo Contact
Email: contact@filabot.com

Due to increased support volume, we have switched all our customer support inquiries to an email ticket system. This will increase our support window and provide you with faster support. If you would like a callback, please email us your phone number so we can assist you.

Our standard response time is 24 to 48 hours on a typical business day.

Shipping Department Hours:

7:00 AM - 5:00 PM
Monday - Friday

Address:

Filabot HQ
81 Parker Road
Barre VT, 05641

www.filabot.com
www.massivedimension.com


Other Resources

Help Center

Extrusion Hardware

Tested Plastics - What plastics work, what do not

Videos

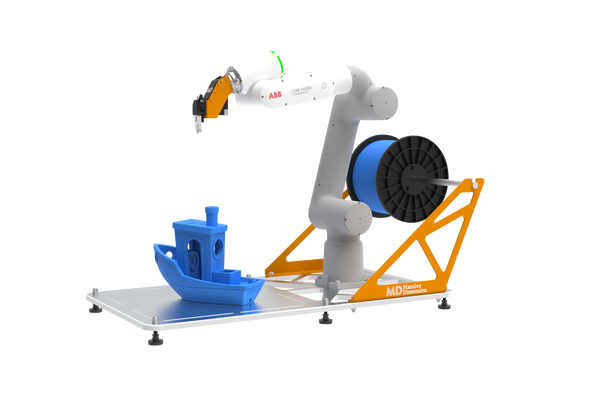

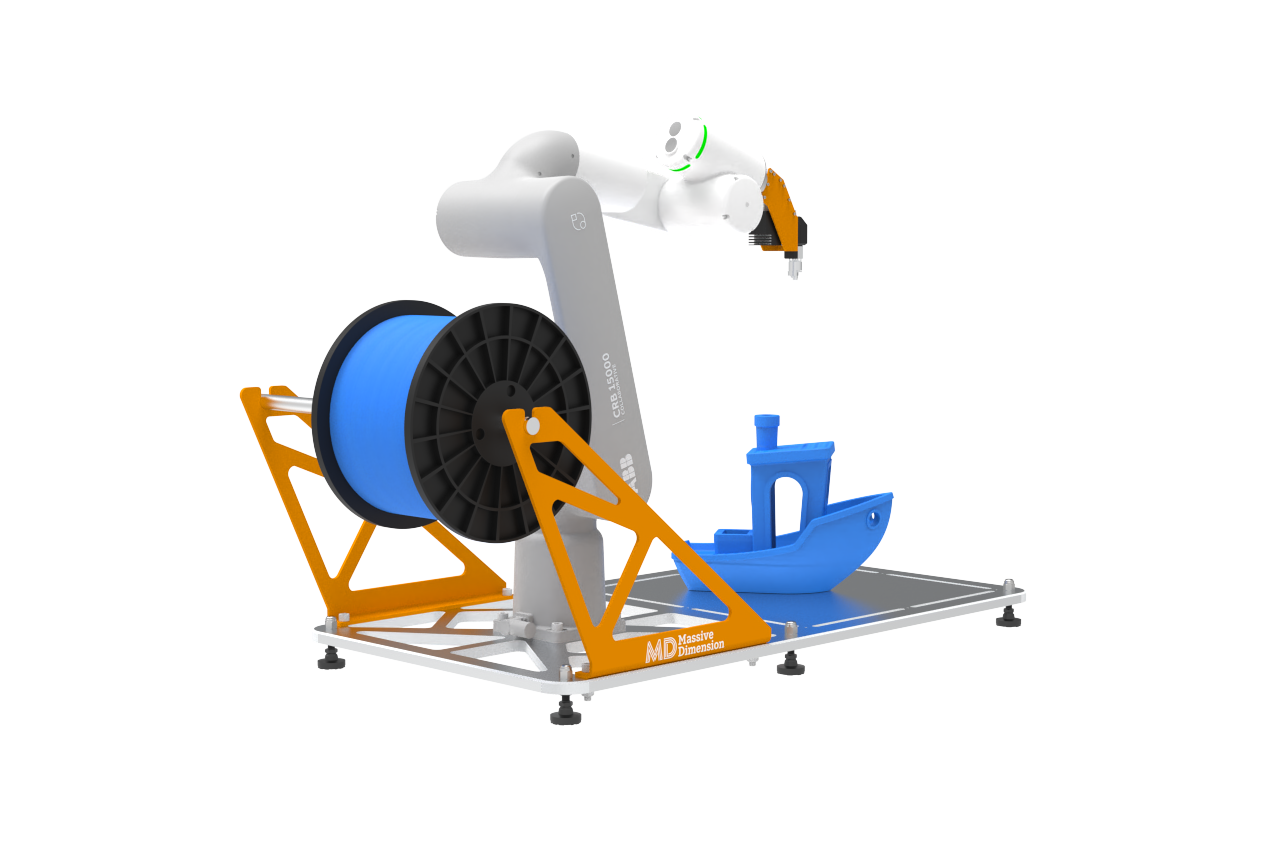

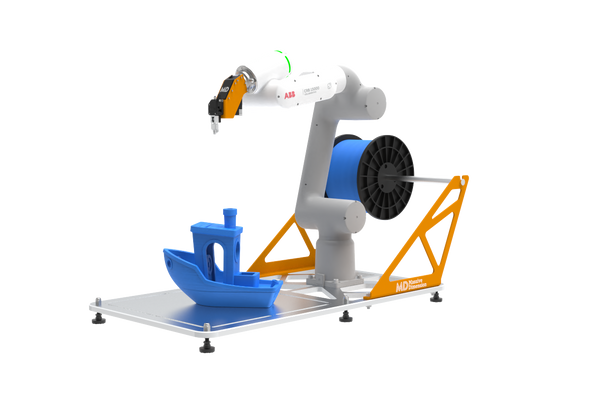

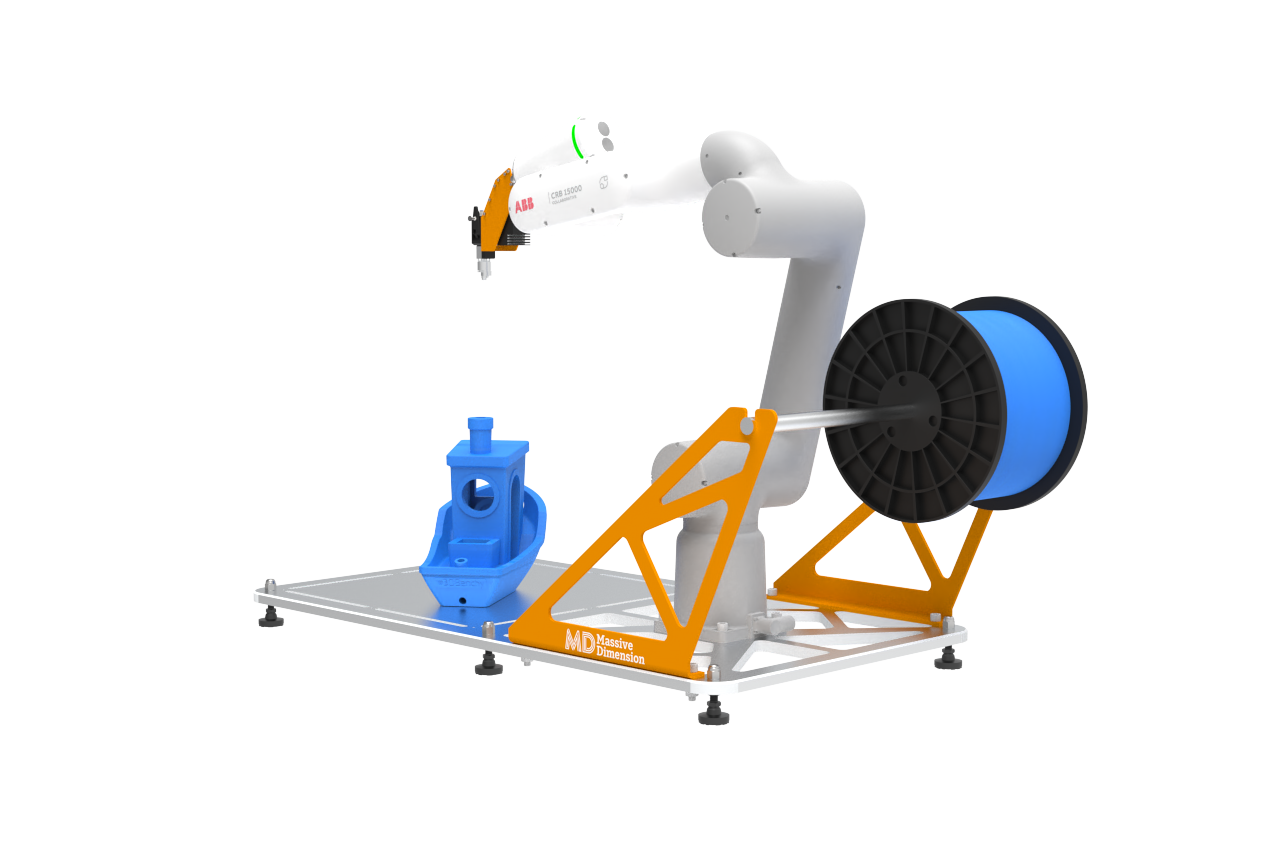

The MDAC1, the latest robotic 3D printing cell from Massive Dimension, is here to revolutionize your printing game. With this incredible machine, you can create objects that go beyond the conventional horizontal printing process. Print on angled surfaces, create non-planar and multi-planar designs, clad surfaces, and bring your ideas to life like never before!

The whole assembly is built on a sturdy protective frame that makes it easy to mount on a tabletop or industrial cart, making it ideal for any environment.

The MDAC1 is powered by the GoFa CRB 15000 robot from ABB that has integrated torque sensors in each of its six joints, offering superior power and force limiting performance.  Together, these bring GoFa to an immediate stop if it senses any contact with an object.

Ease-of-use is the focus here, with a turn-key 3D printing setup, enhanced interaction capabilities, and Wizard easy programming, anyone can start printing right away!

MDAC1 is a STEM.org Authenticated Educational Product

Specification:

  • ABB GoFa CRB 15000
  • Any 1.75mm Filament
  • 0.4mm - 1.2mm Nozzle Size
  • All Metal Hotend - 500°C temperature rating
  • Heated Build Surface
  • 21.5in x 21.5in x 20in Build Volume
  • Non-planar, multi-planar, angled printing methods
  • 120VAC Power Input

What's Included:

  • ABB GoFa CRB 15000 Robot
  • MD Process Cabinet for MDAC1 Filament Printer
  • Hotend and Heated Build Surface
  • 5kg PLA Filament

Product Data Sheet
